Description

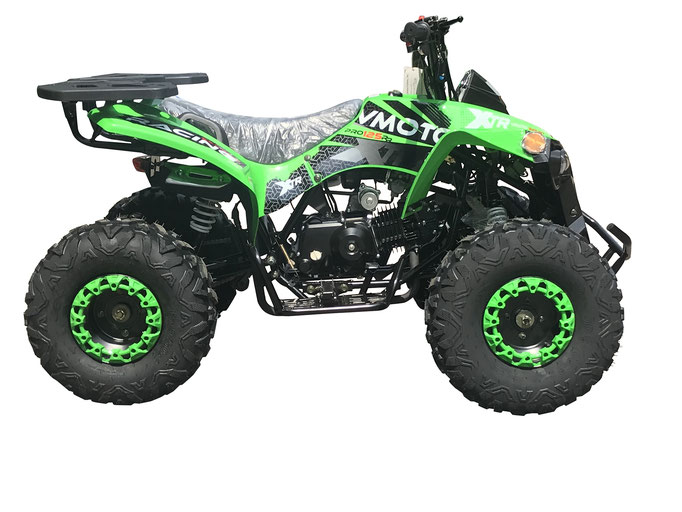

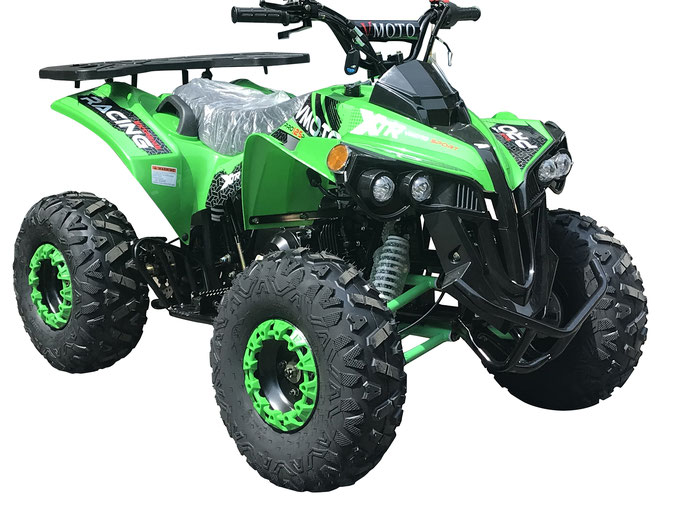

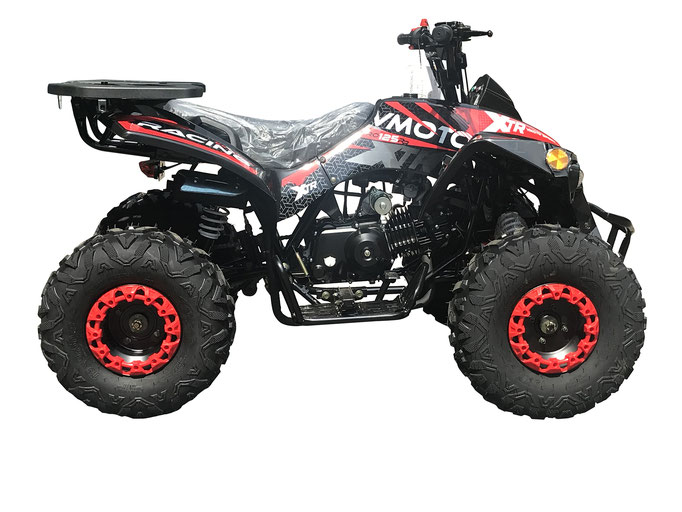

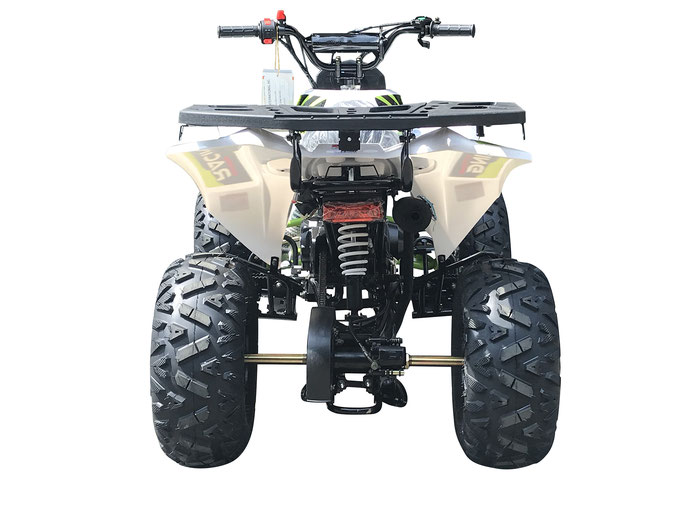

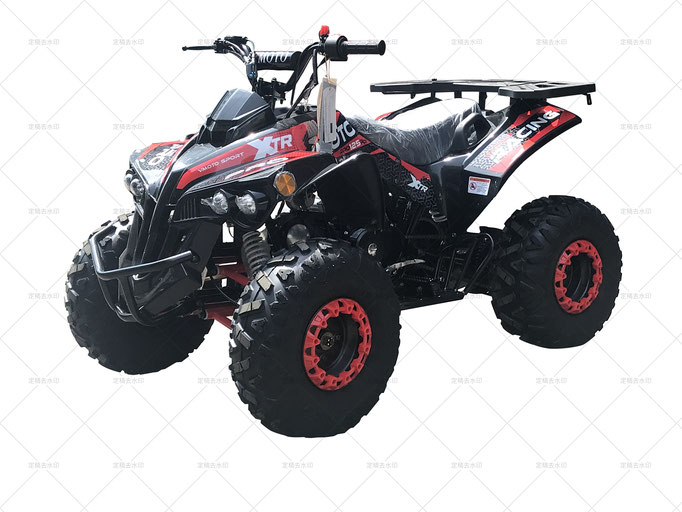

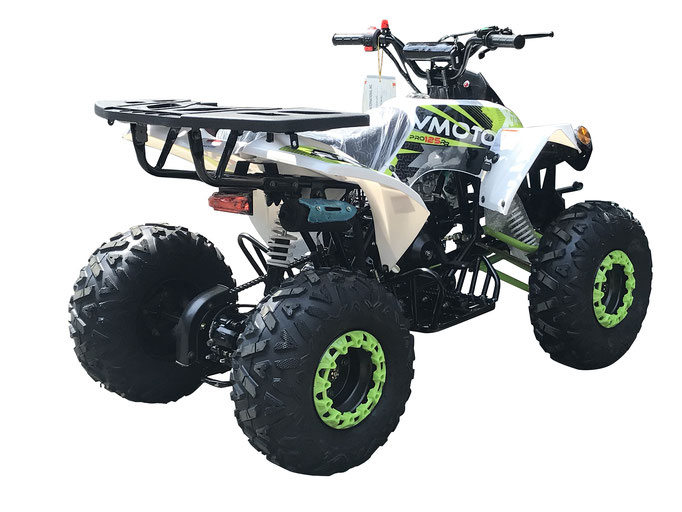

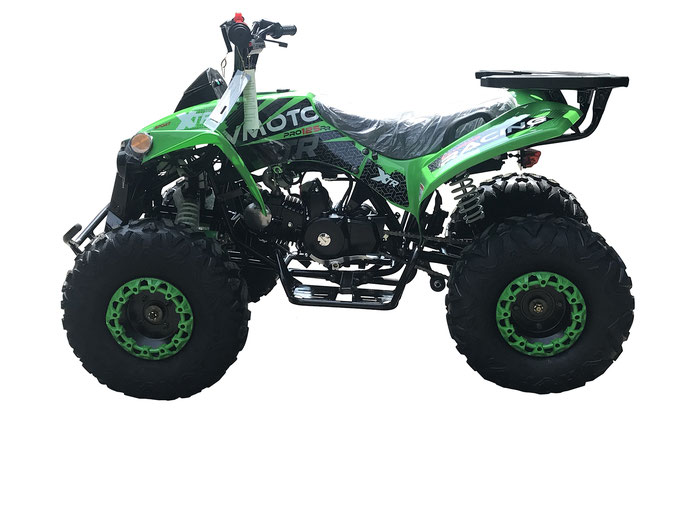

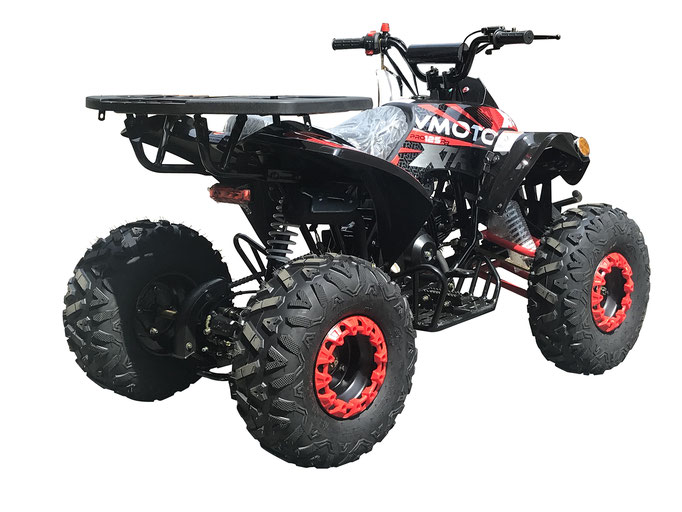

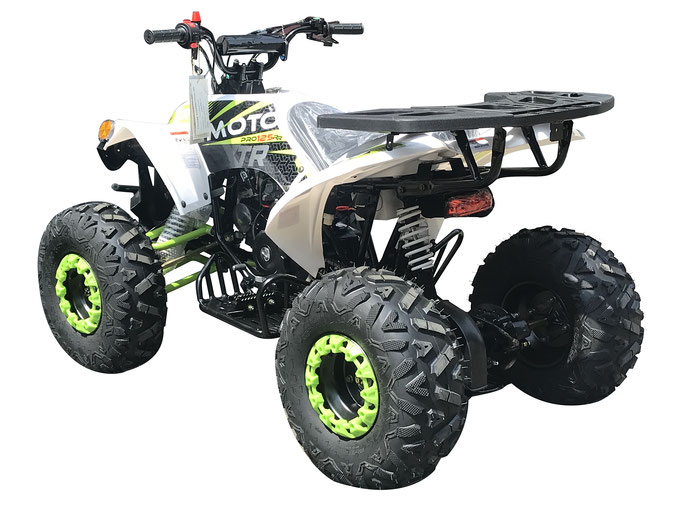

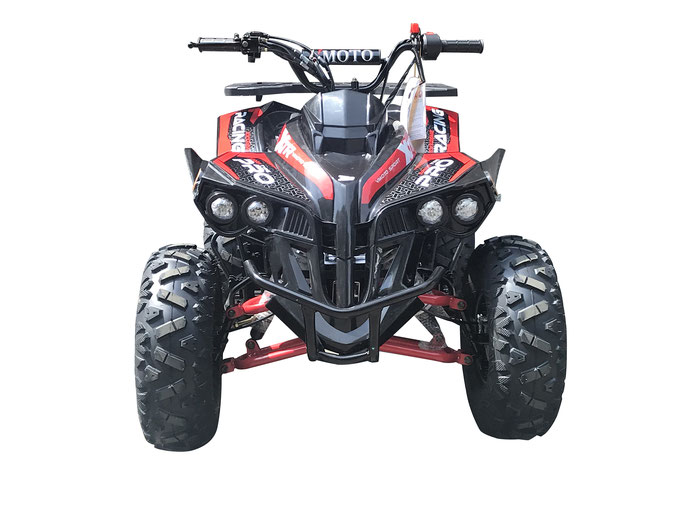

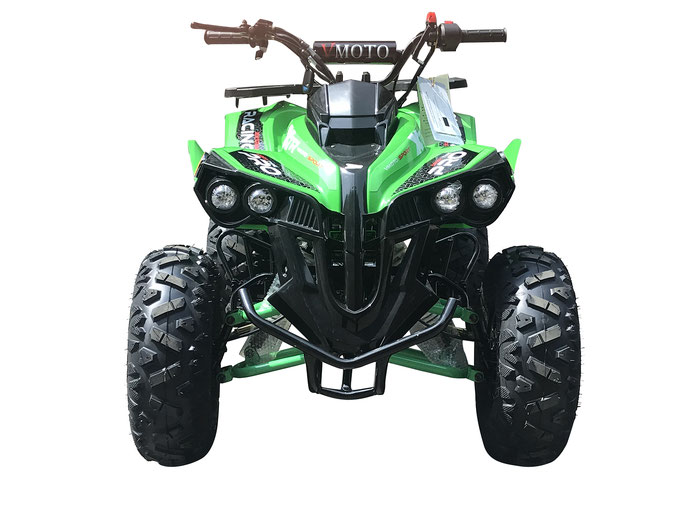

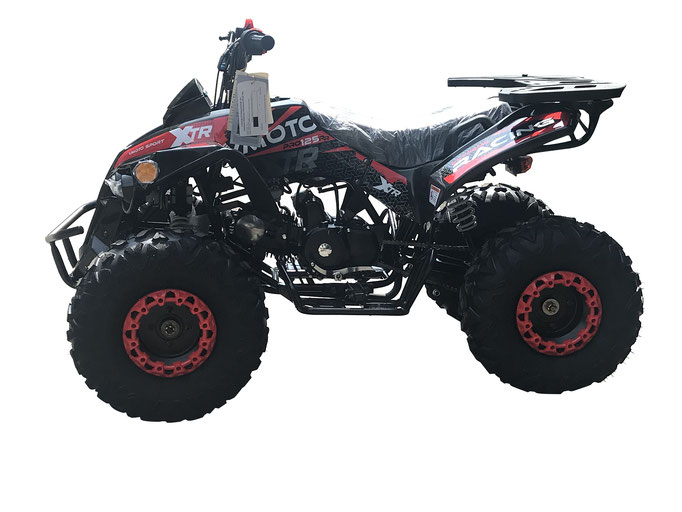

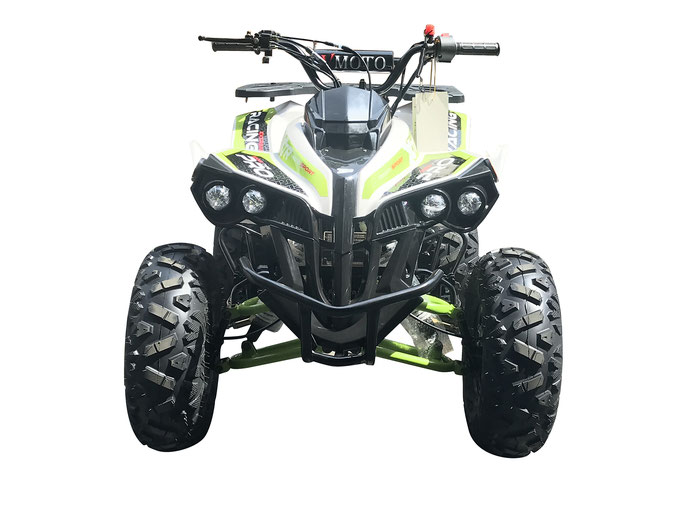

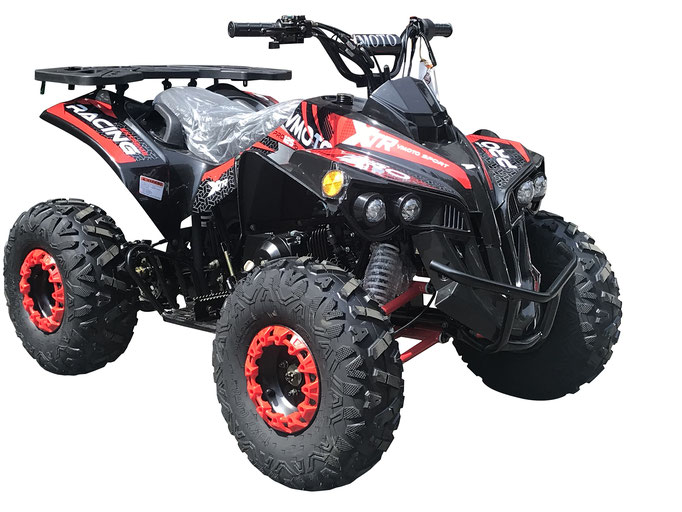

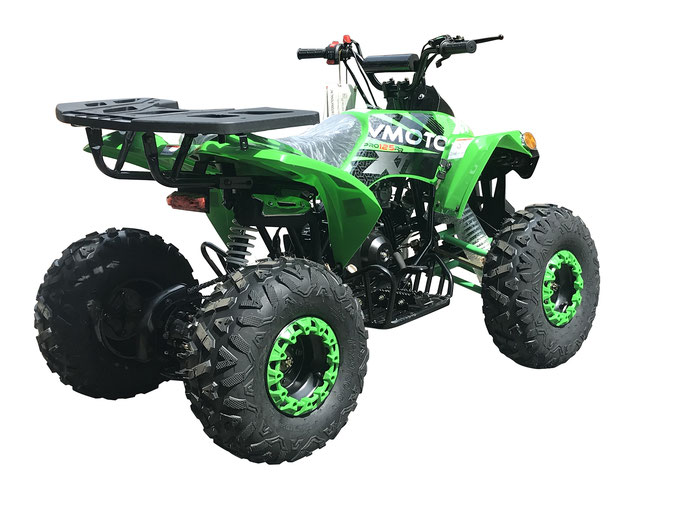

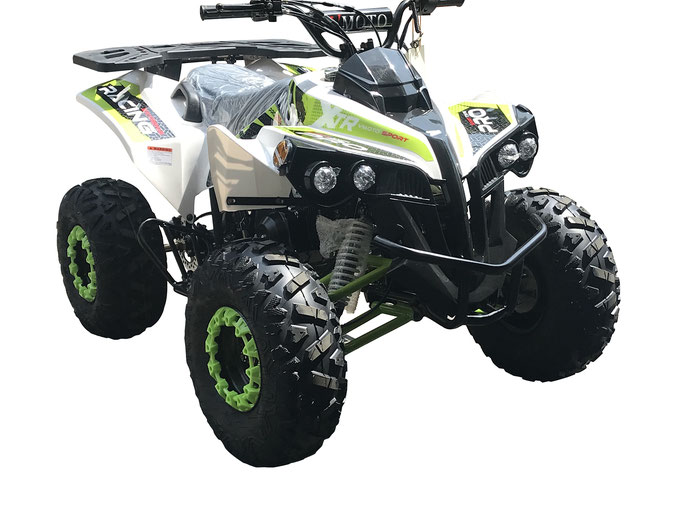

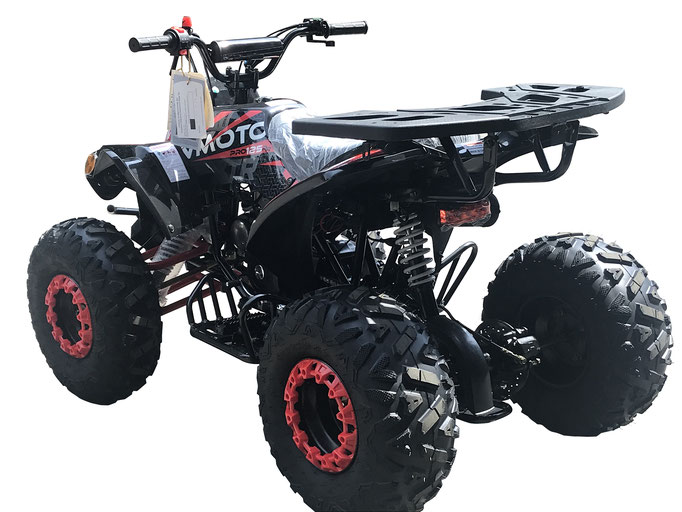

• Model: Pro Max 125 ATV
• Intended User Age: Y12 (12 – up)
• Engine: single cylinder, 4 stroke, air-cooled
• Displacement: 125cc
• Transmission: Automatic with Reverse
• Shift Gear: Foot Shift
• Final Drive: Chain
• Max speed: 34 MPH
• Starting system: Electric
• Ignition: CDI
• Battery: 12V/5Ah
• Fuel capacity: .61 gal.
• Brakes (Front/Rear): Drum / Hydraulic Disc
• Wheels (Front/Rear): 19×7-8 / 18×9.5-8
• Suspension (Front/Rear):
• Max load: 166 lbs.
• Seat Height: TBD
• Min ground clearance: 4.3 inches
• Net Weight: 285 lbs.
• Gross Weight: 310 lbs.
• Dimensions (LxWxH): 55.5×39.7×37.9 inches
• Shipping Dimensions (LxWxH): 58×30.5×26 inches
