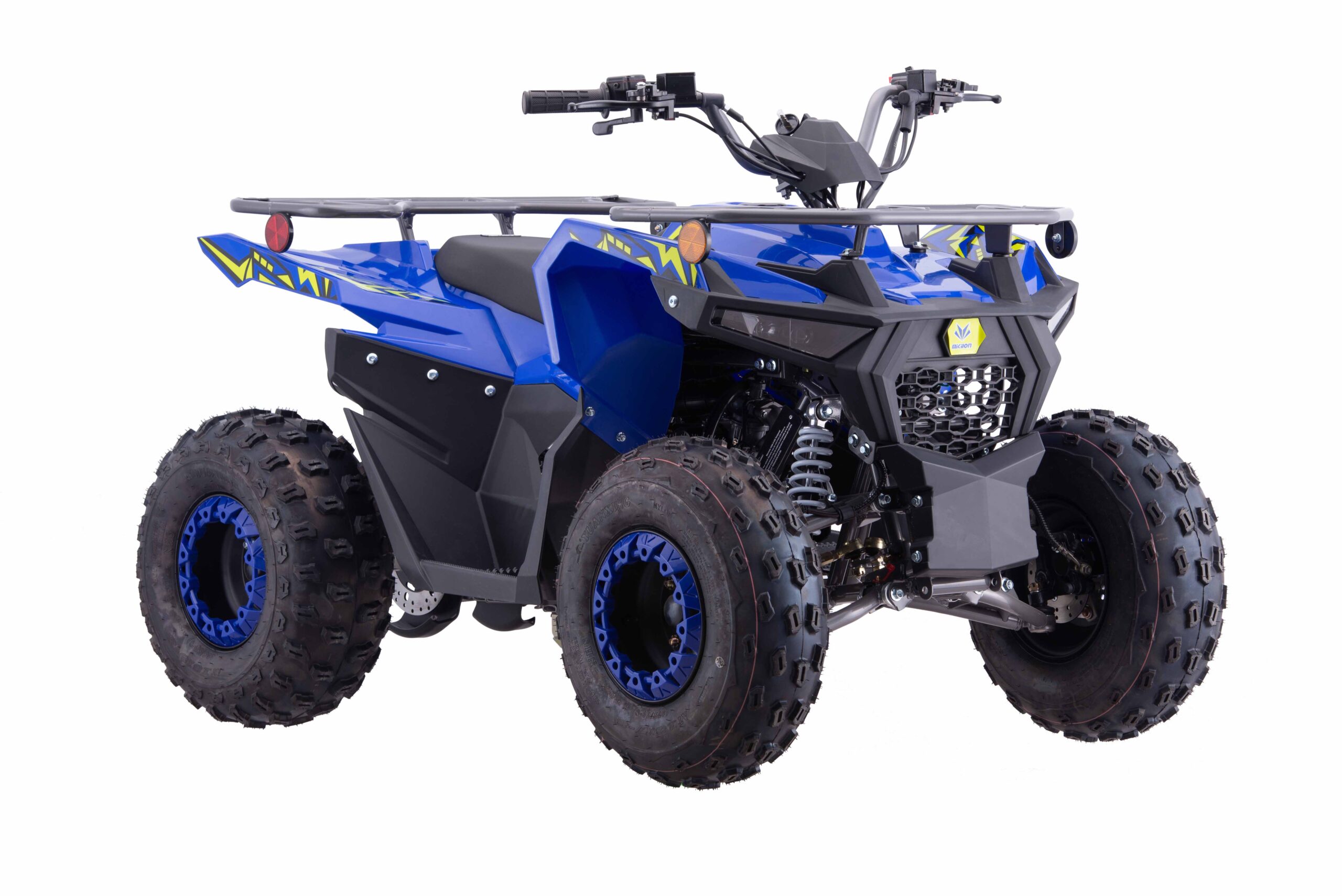

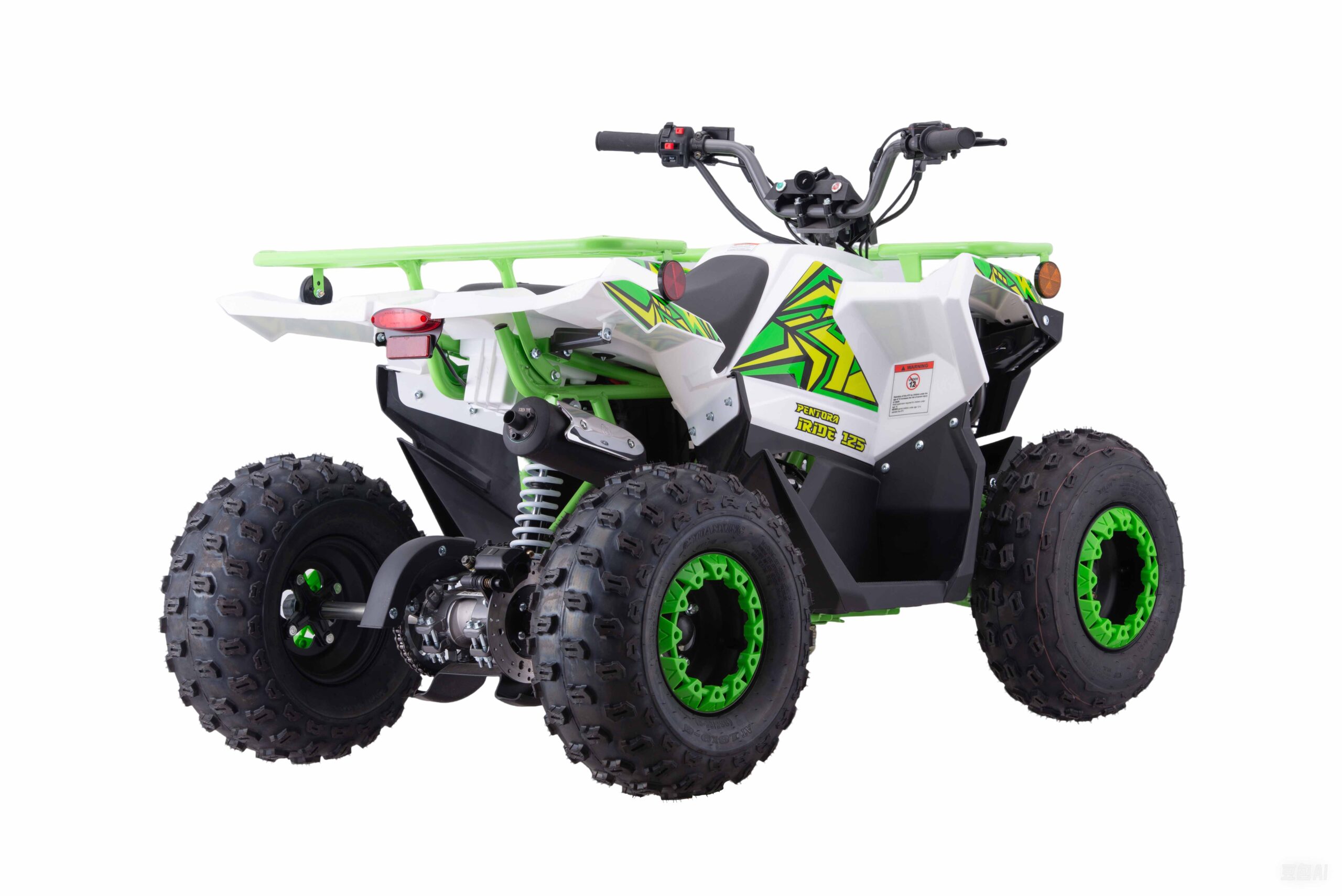

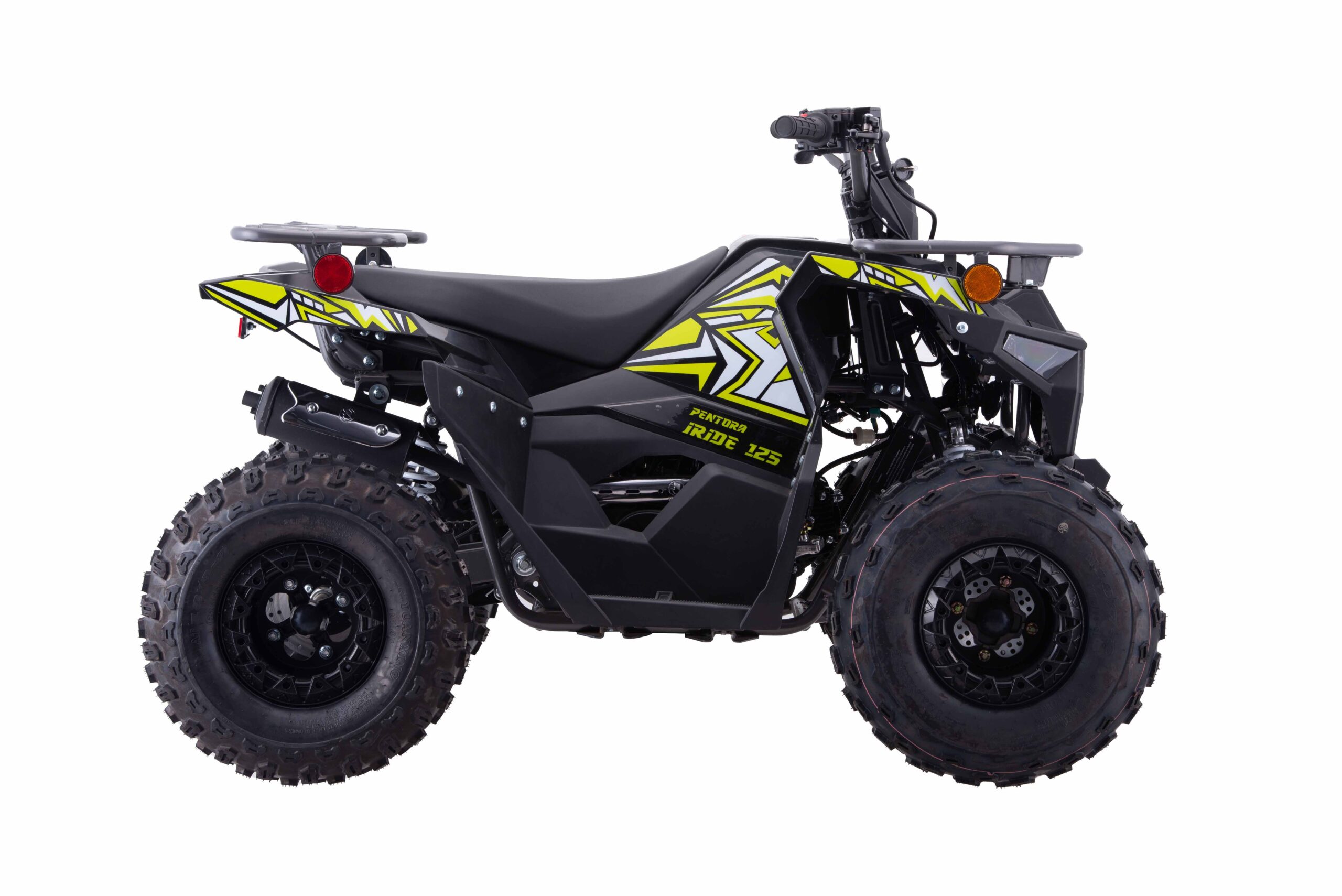

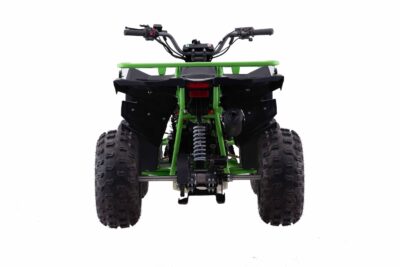

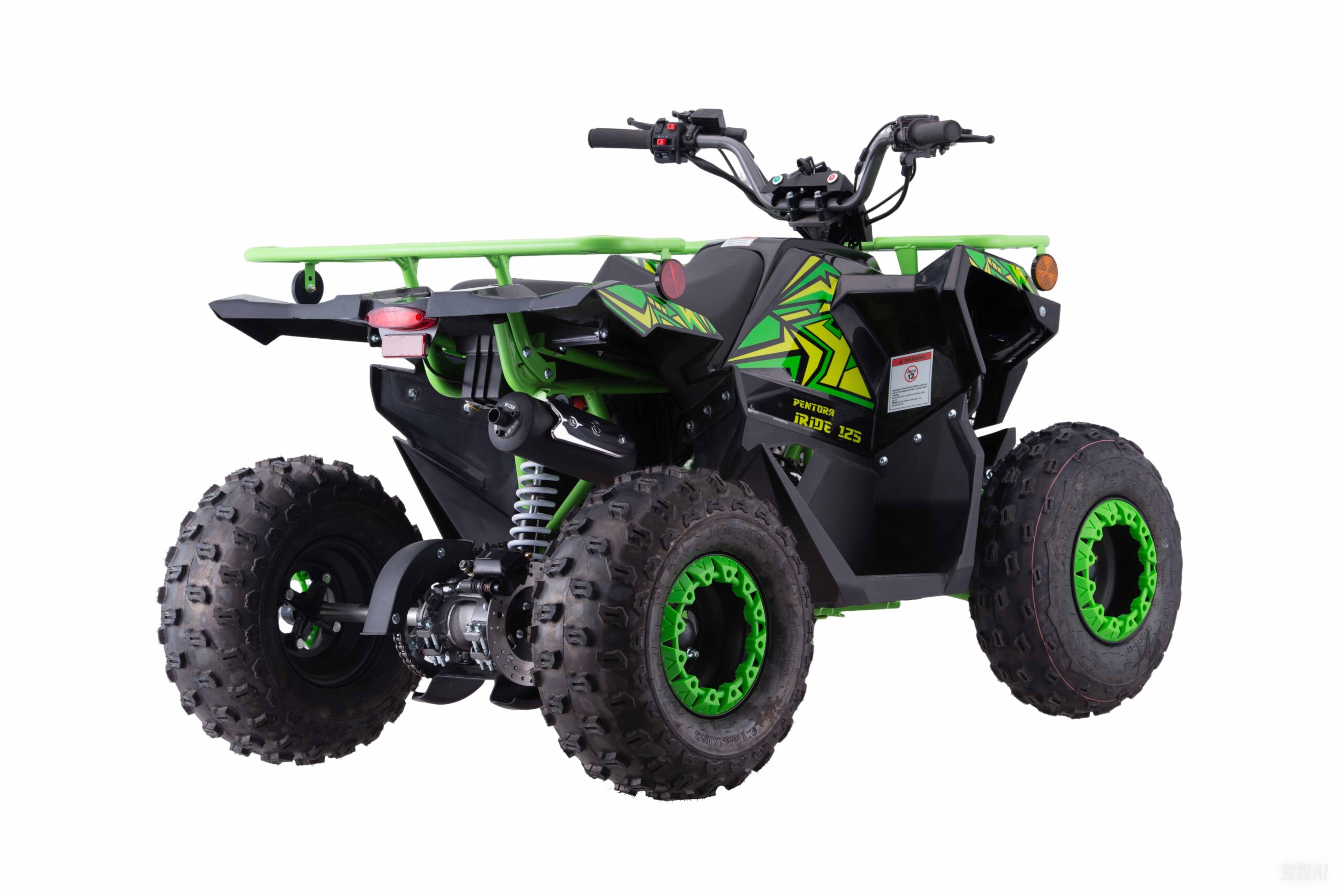

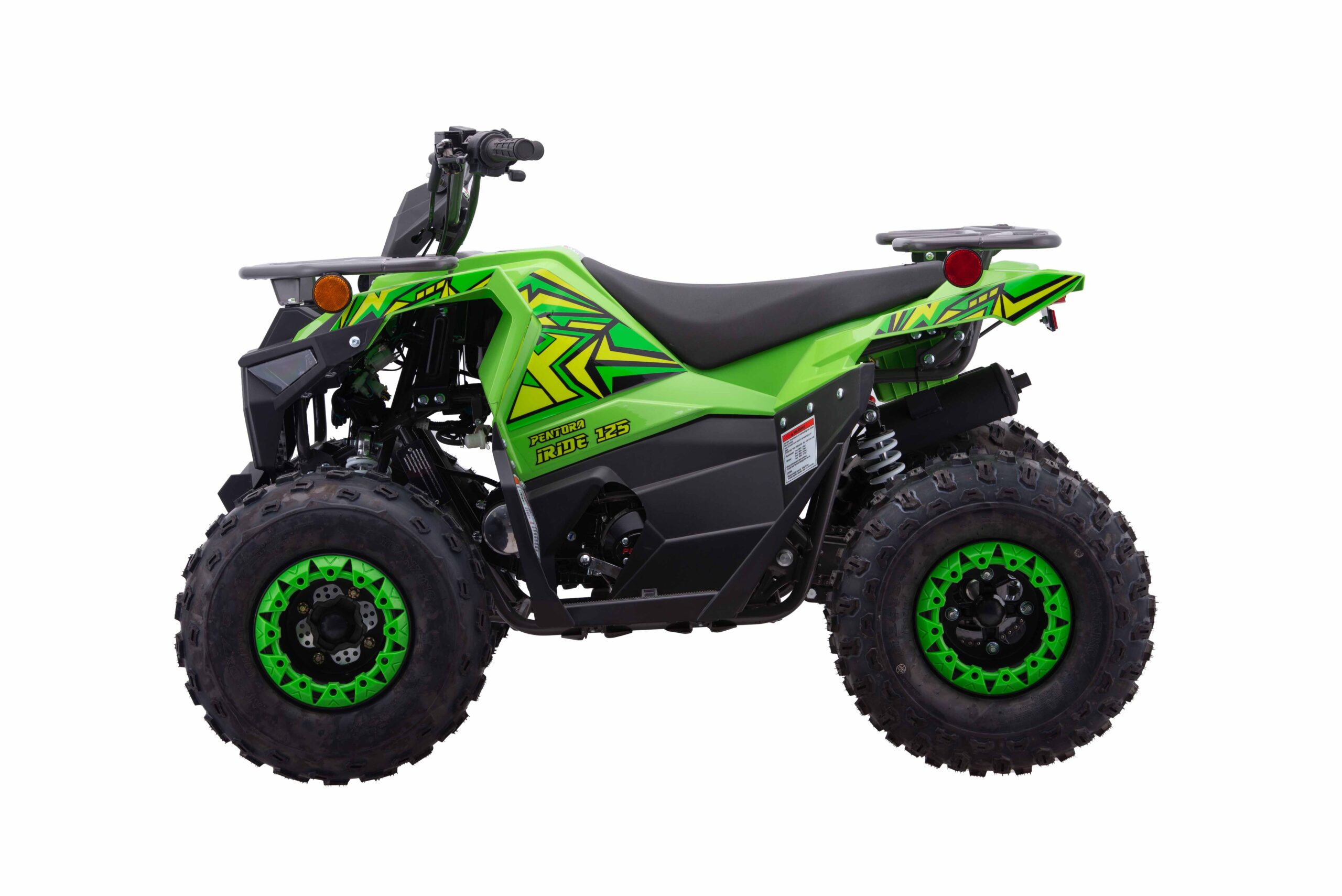

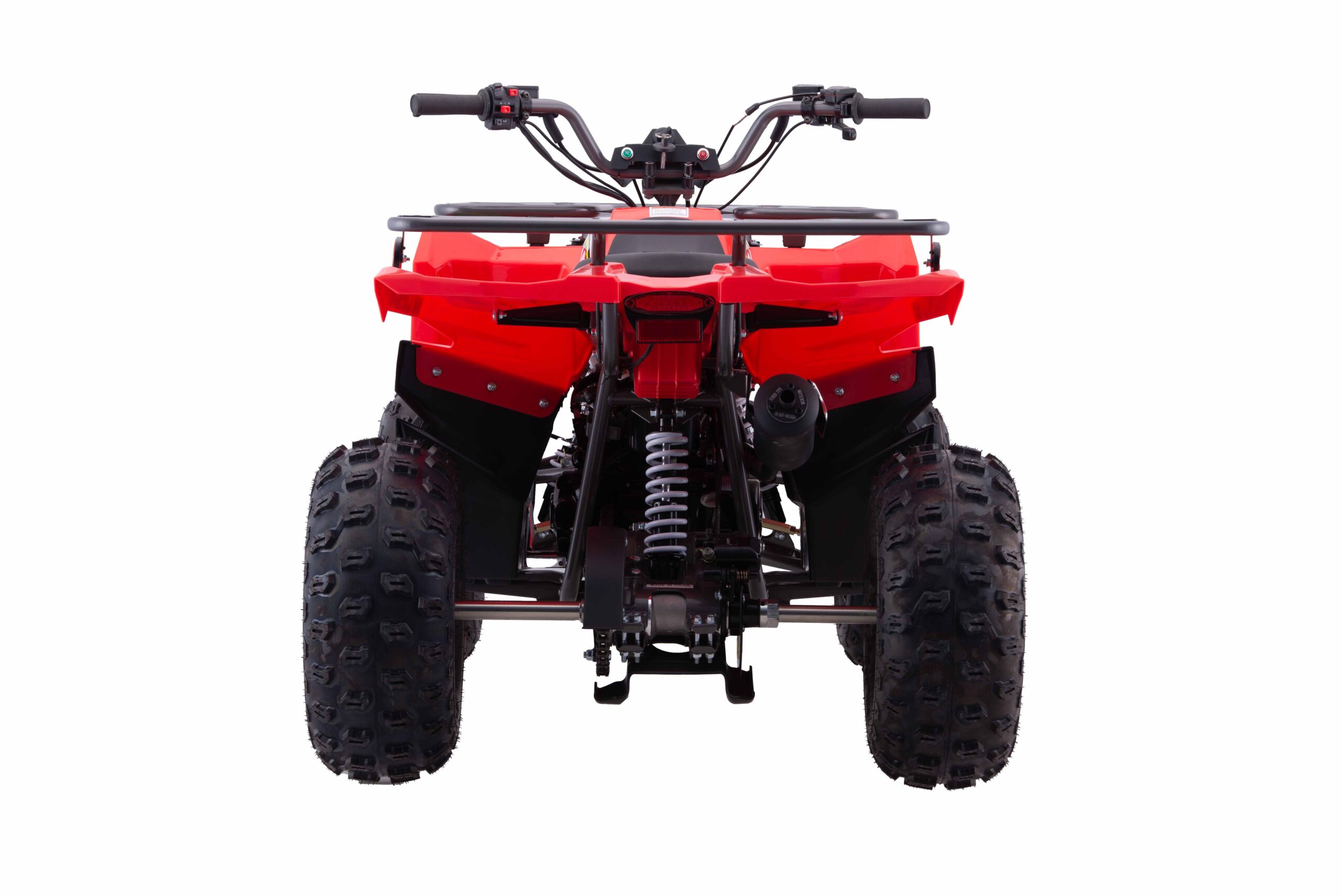

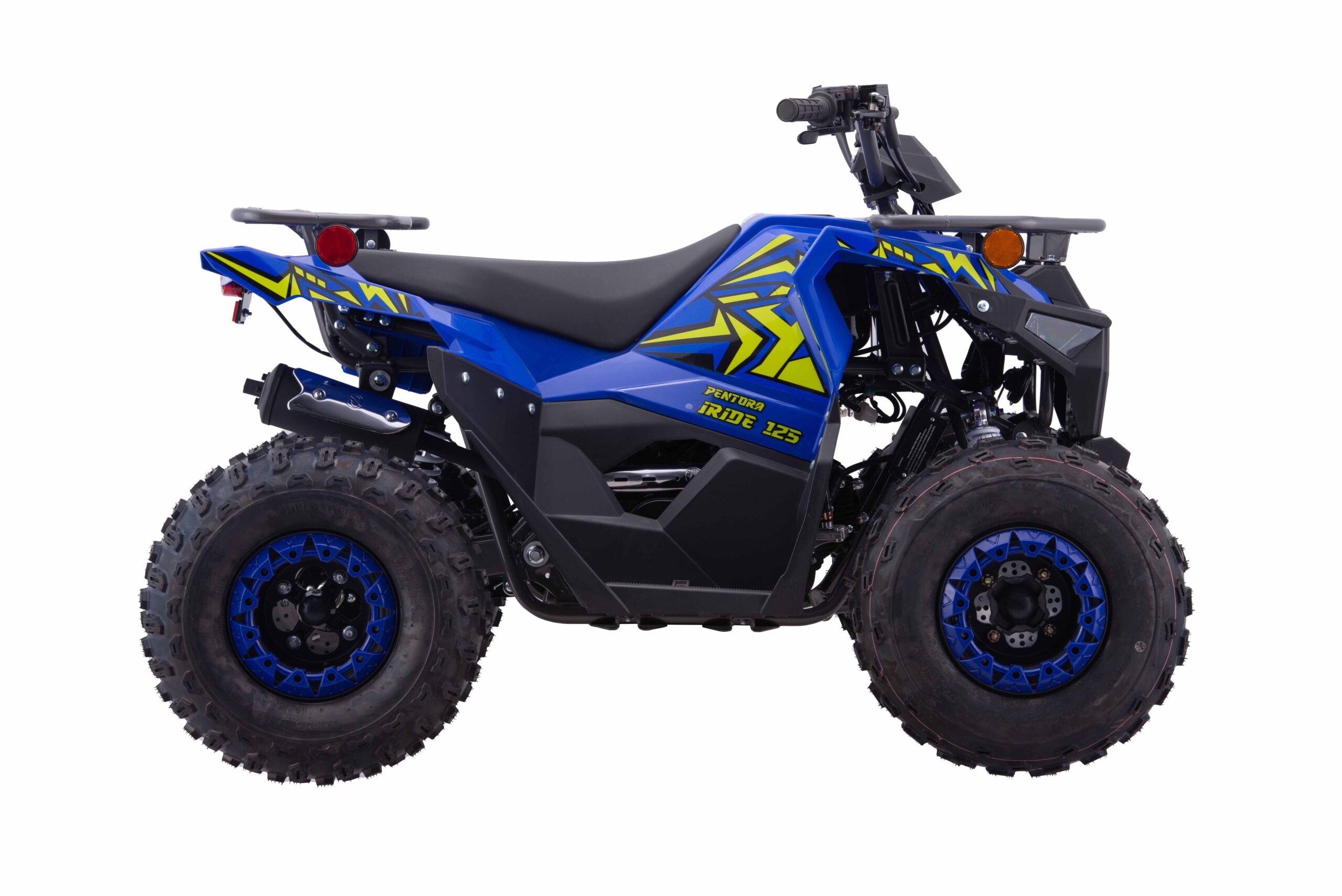

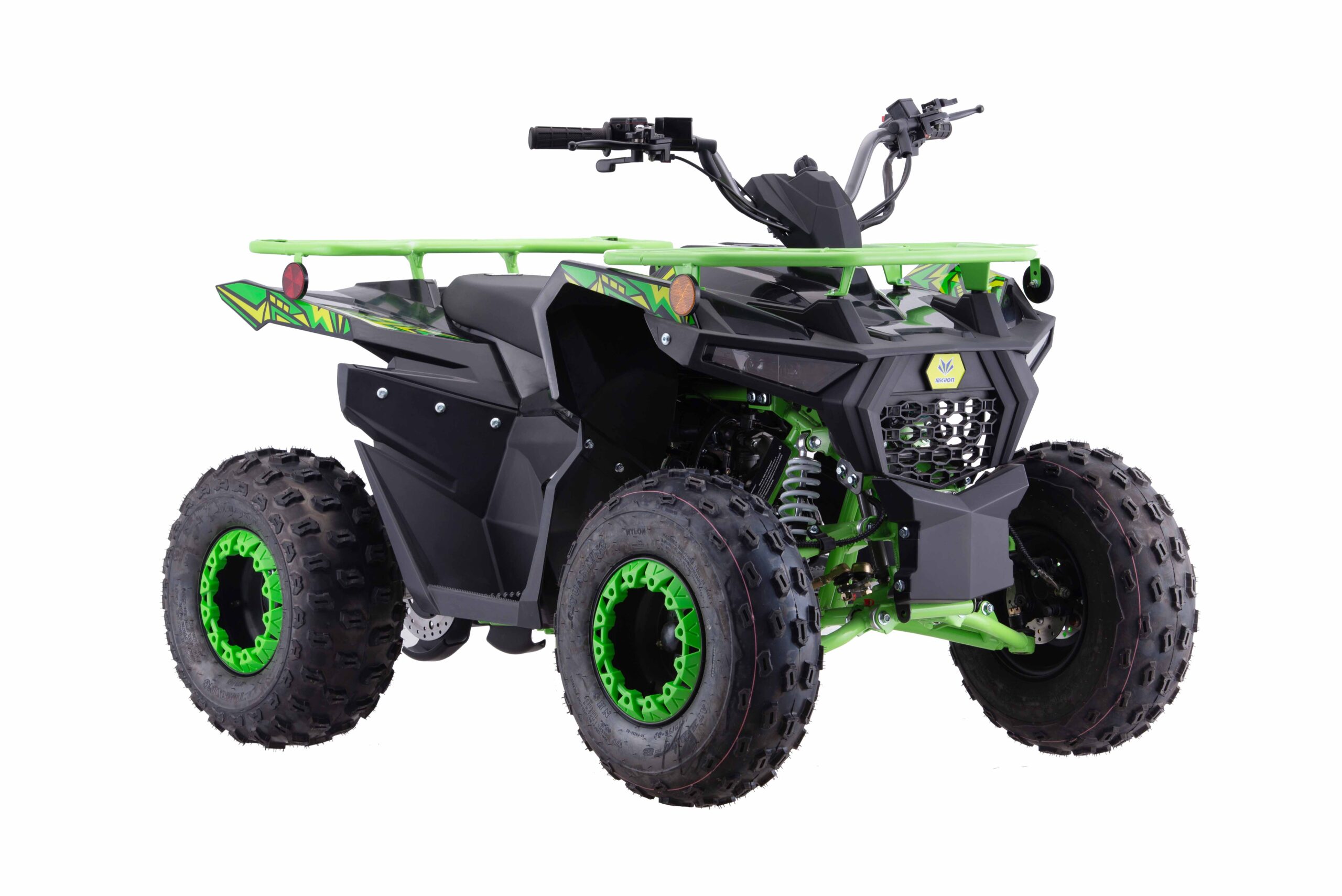

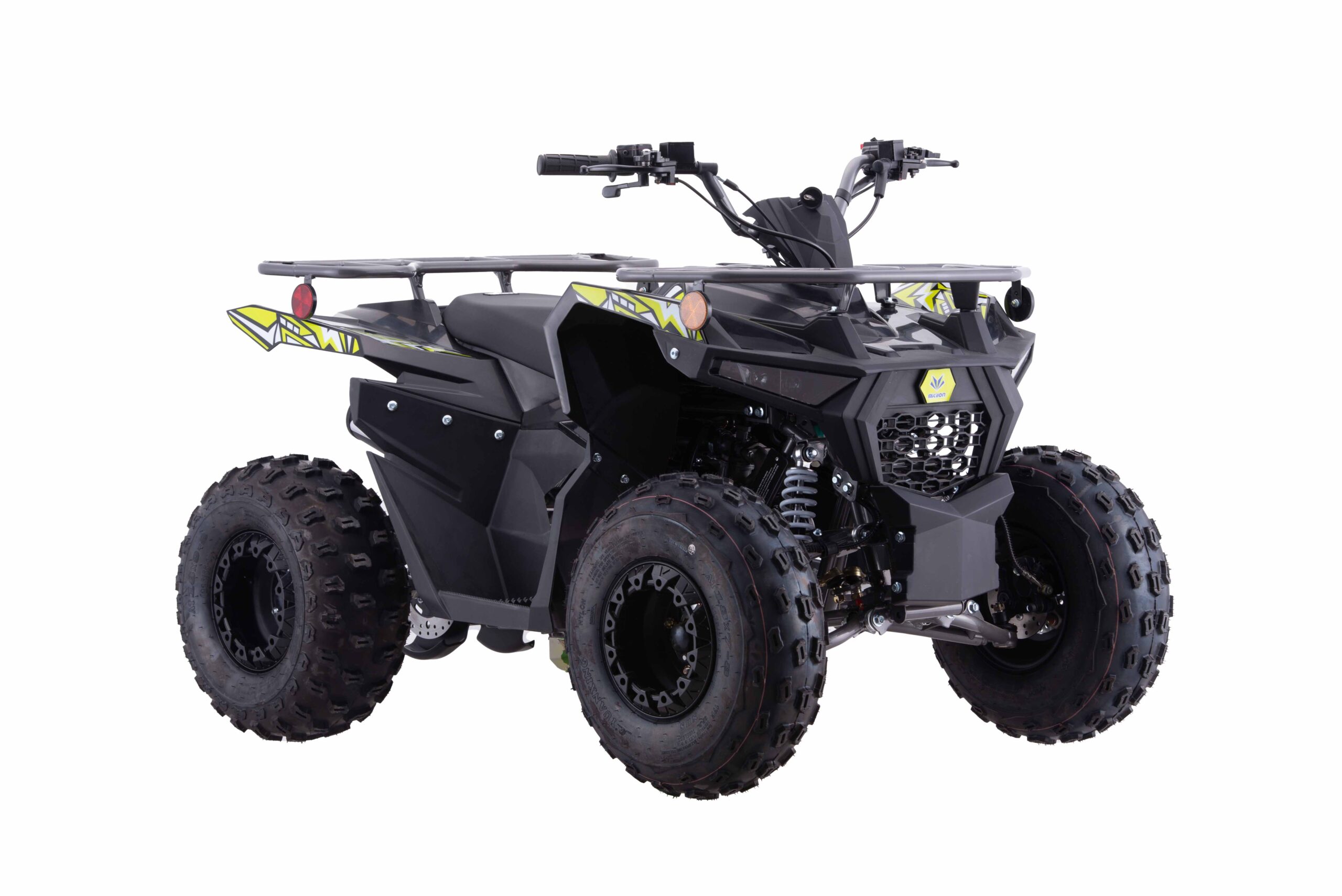

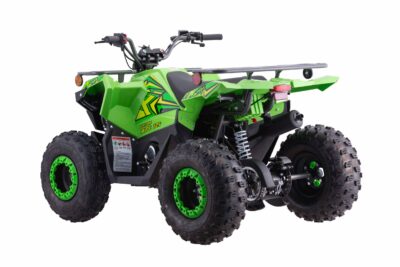

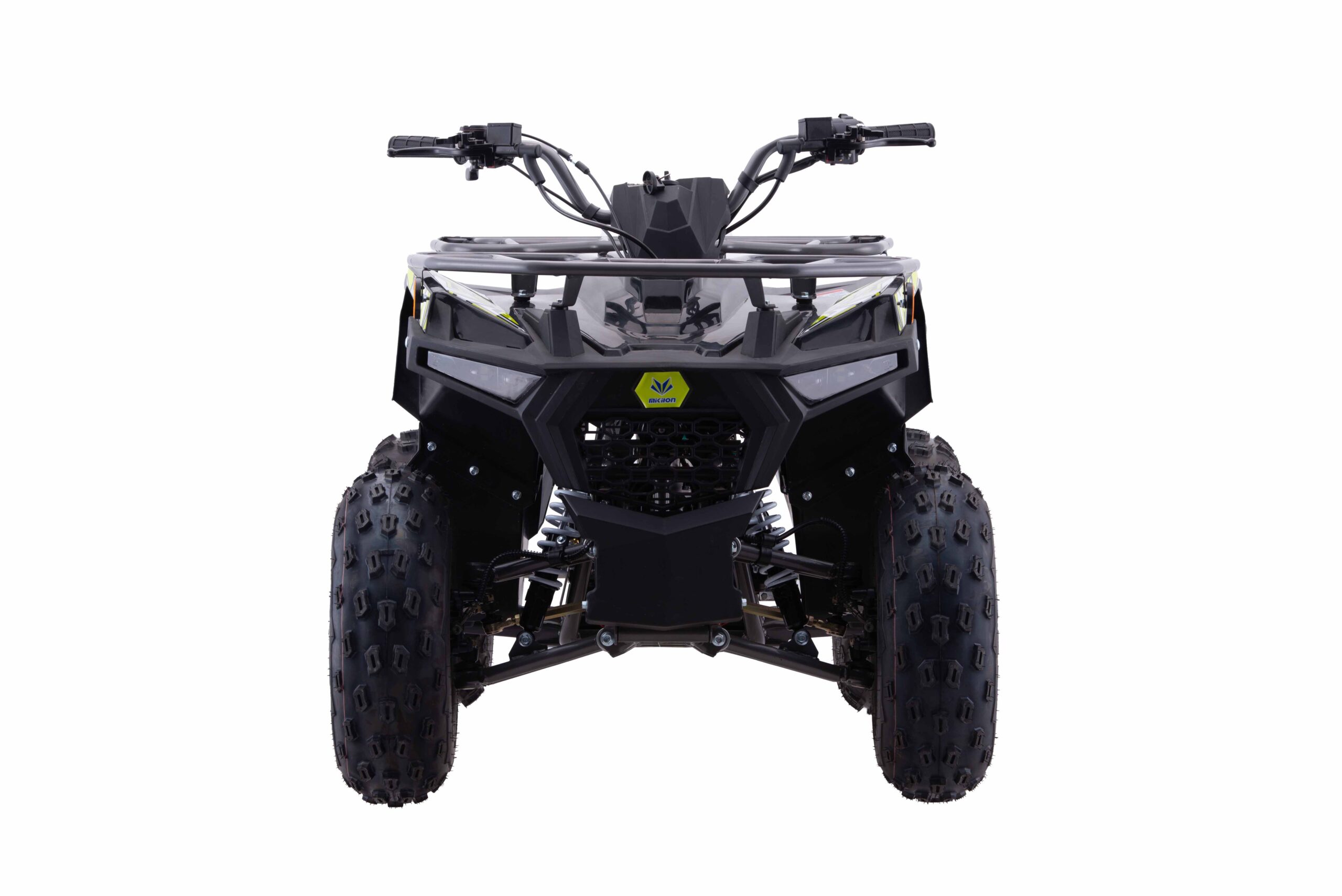

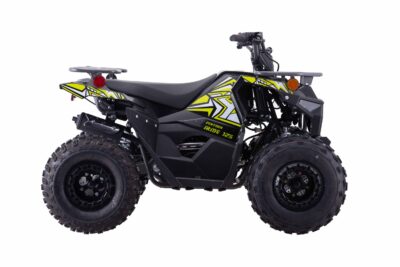

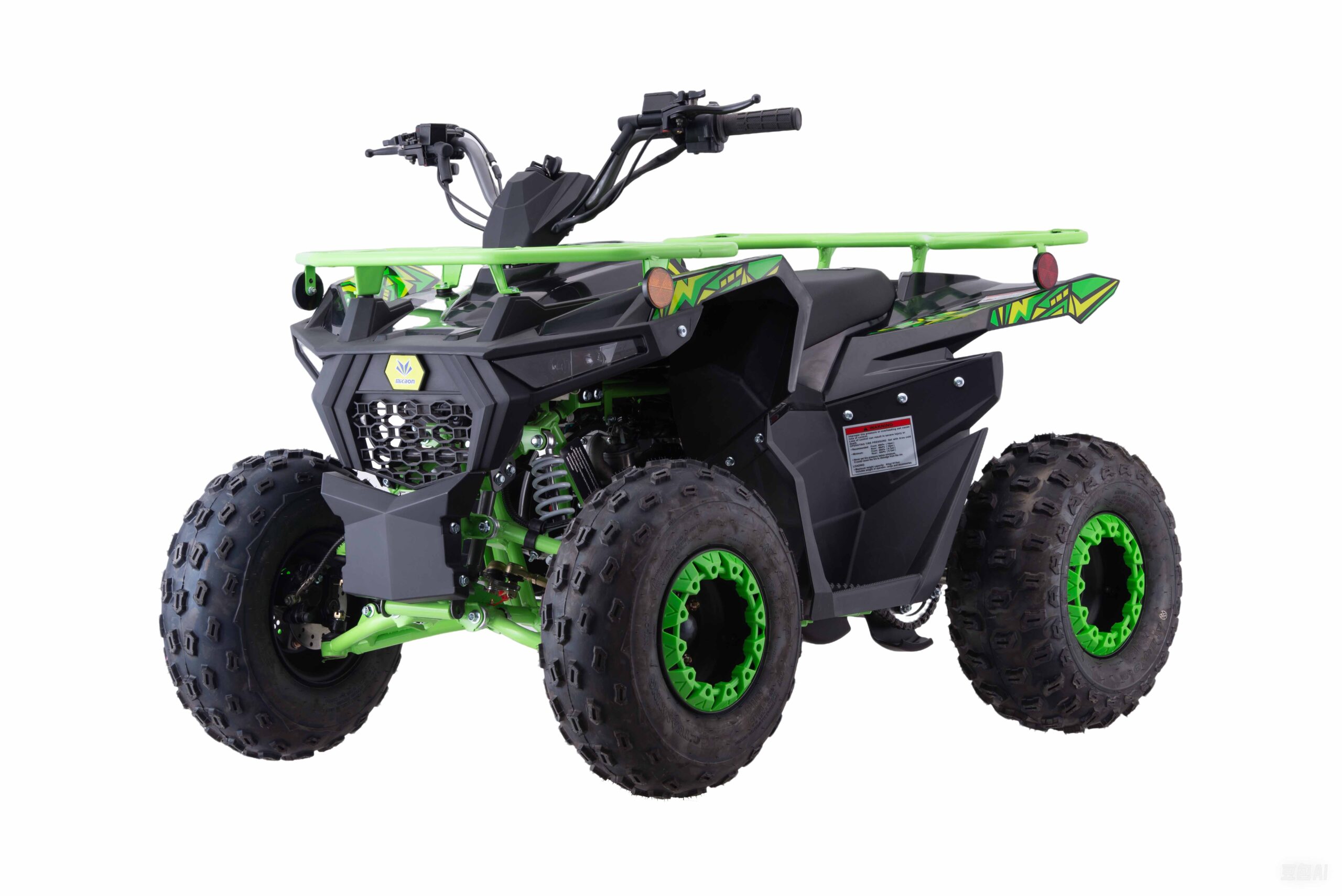

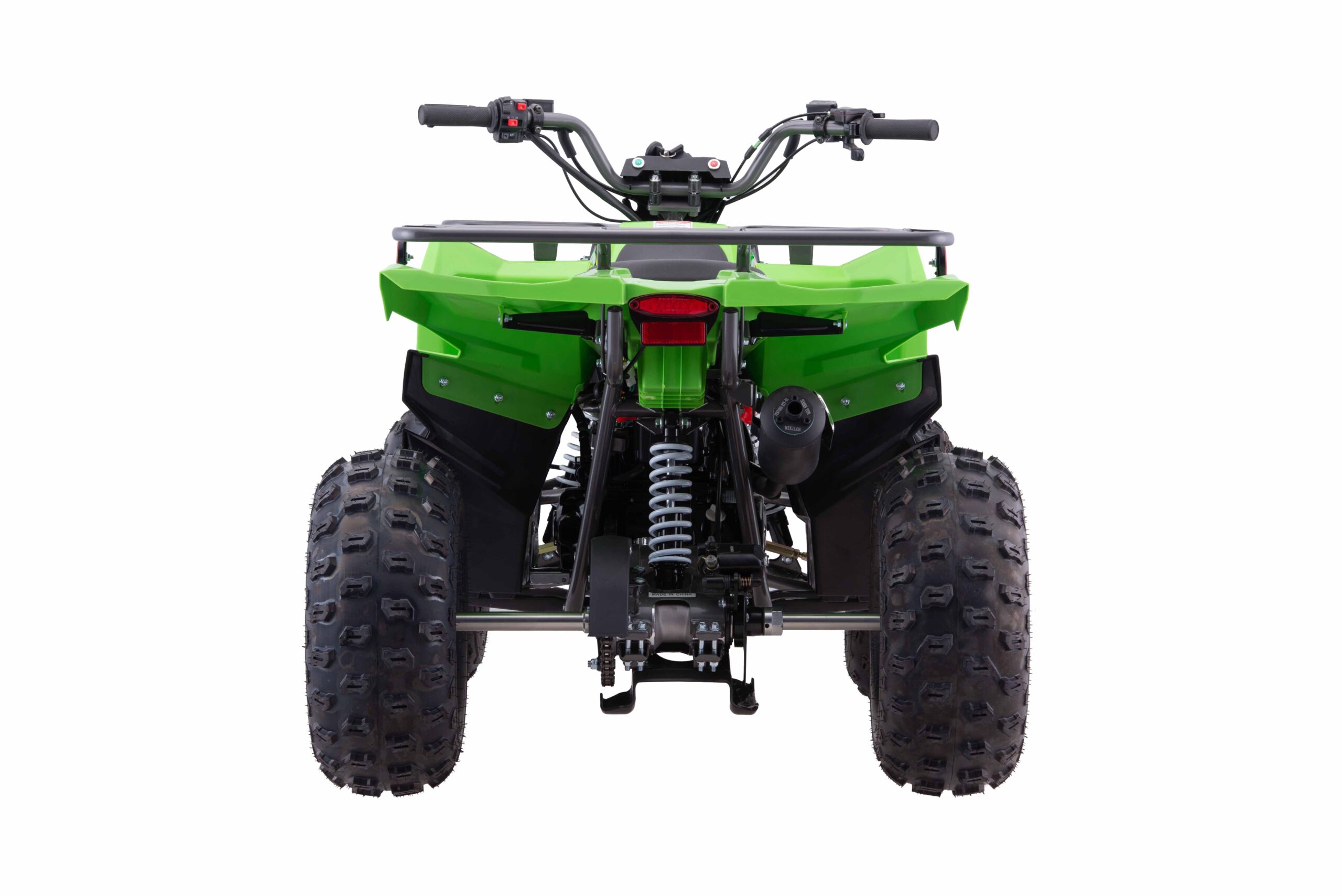

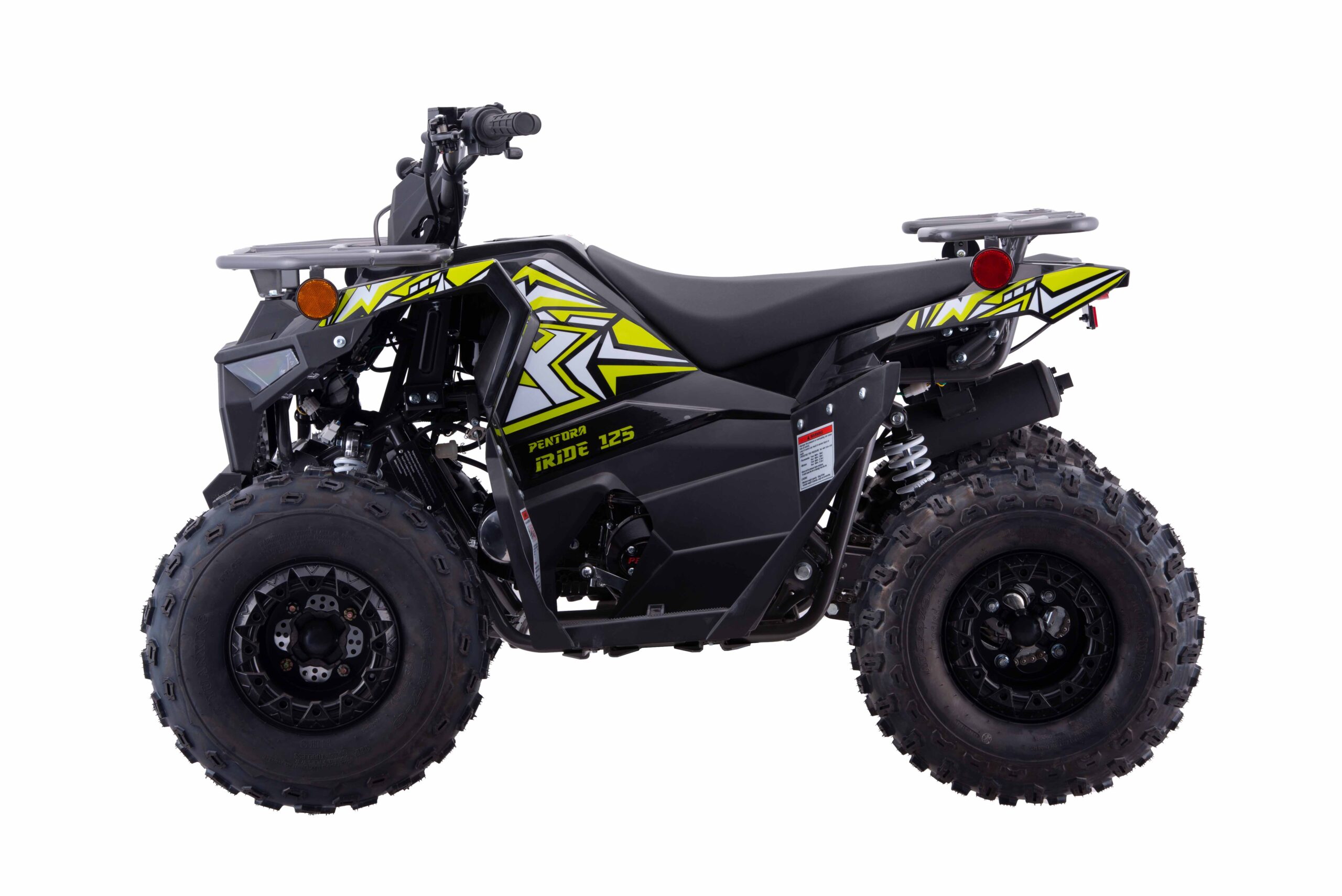

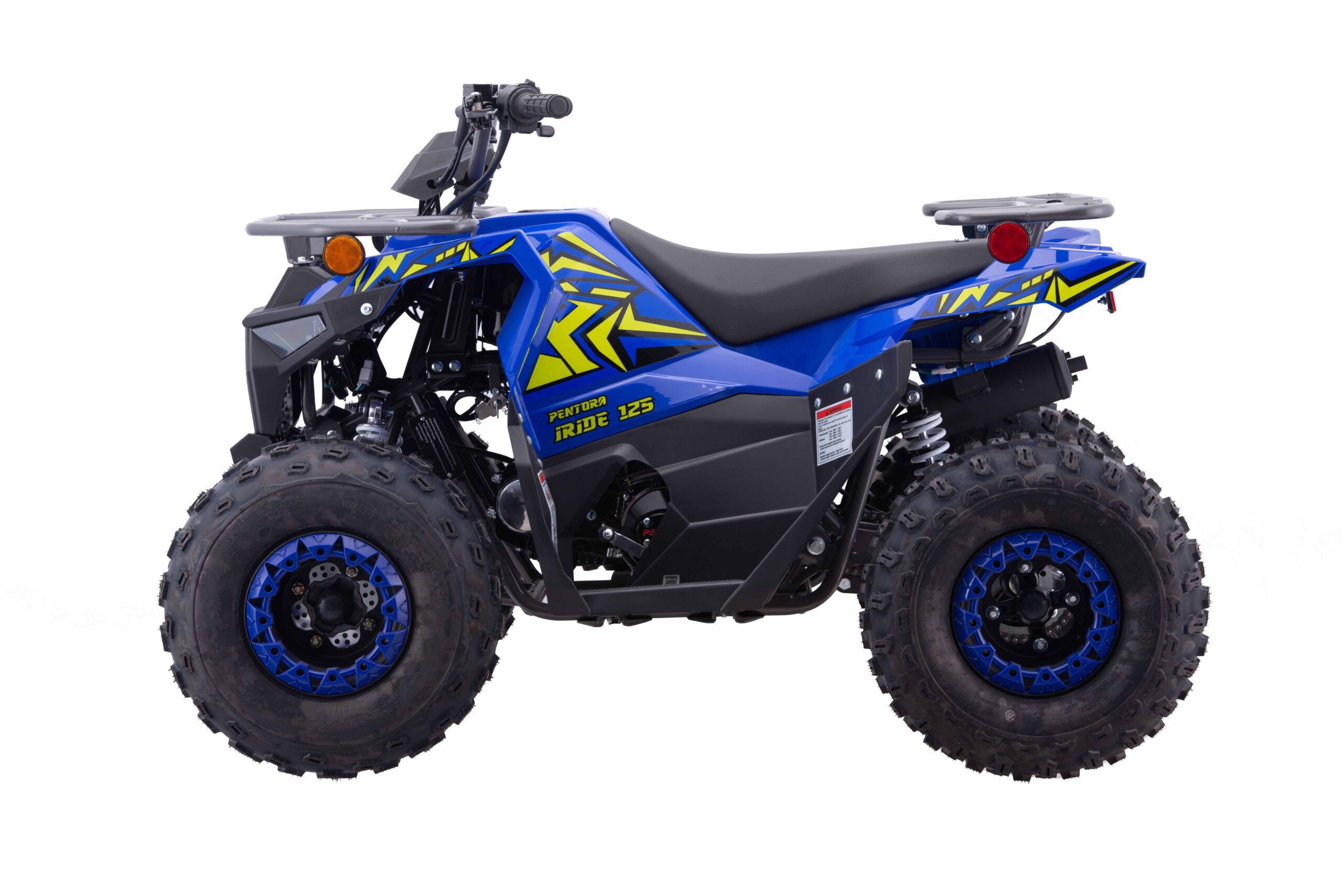

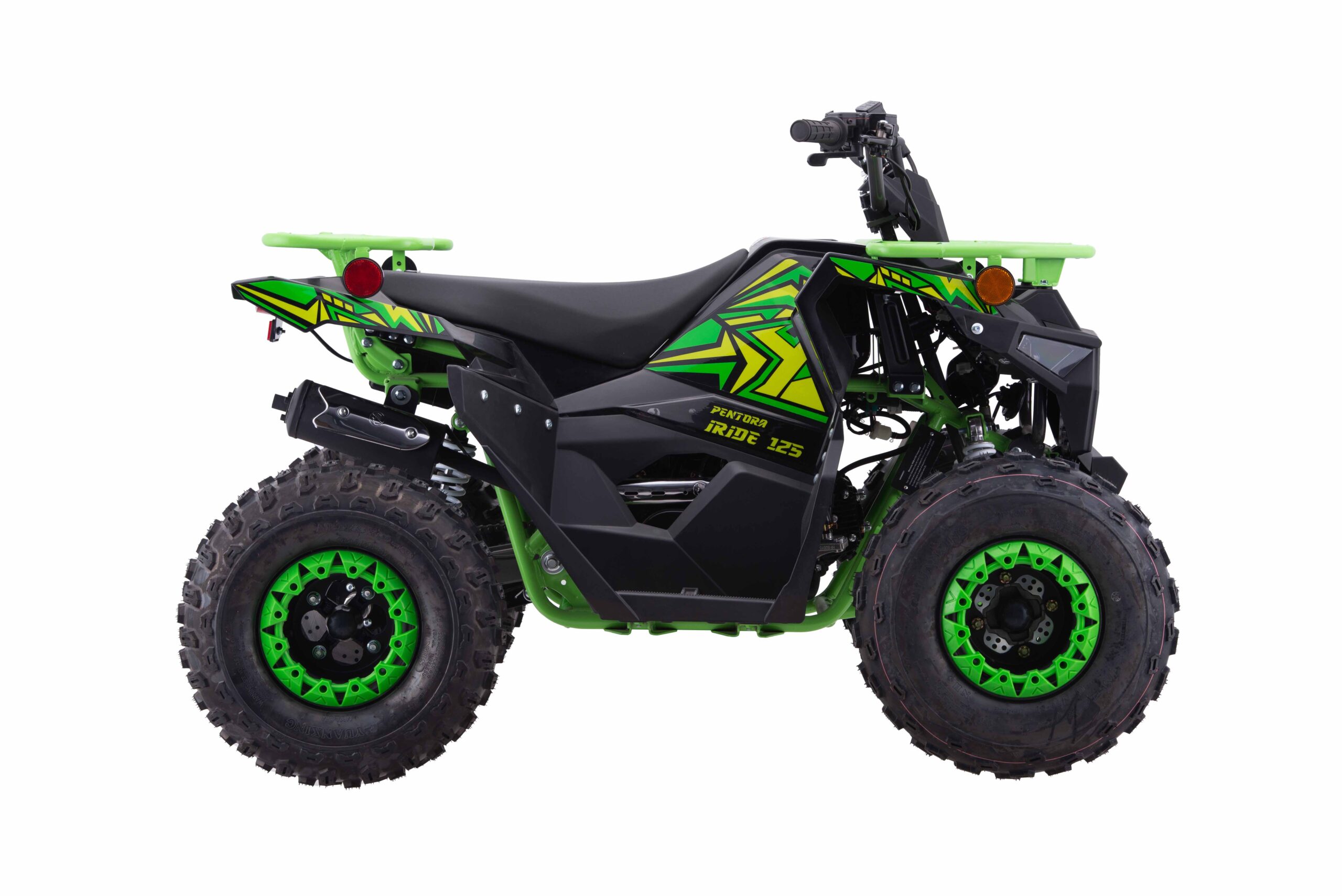

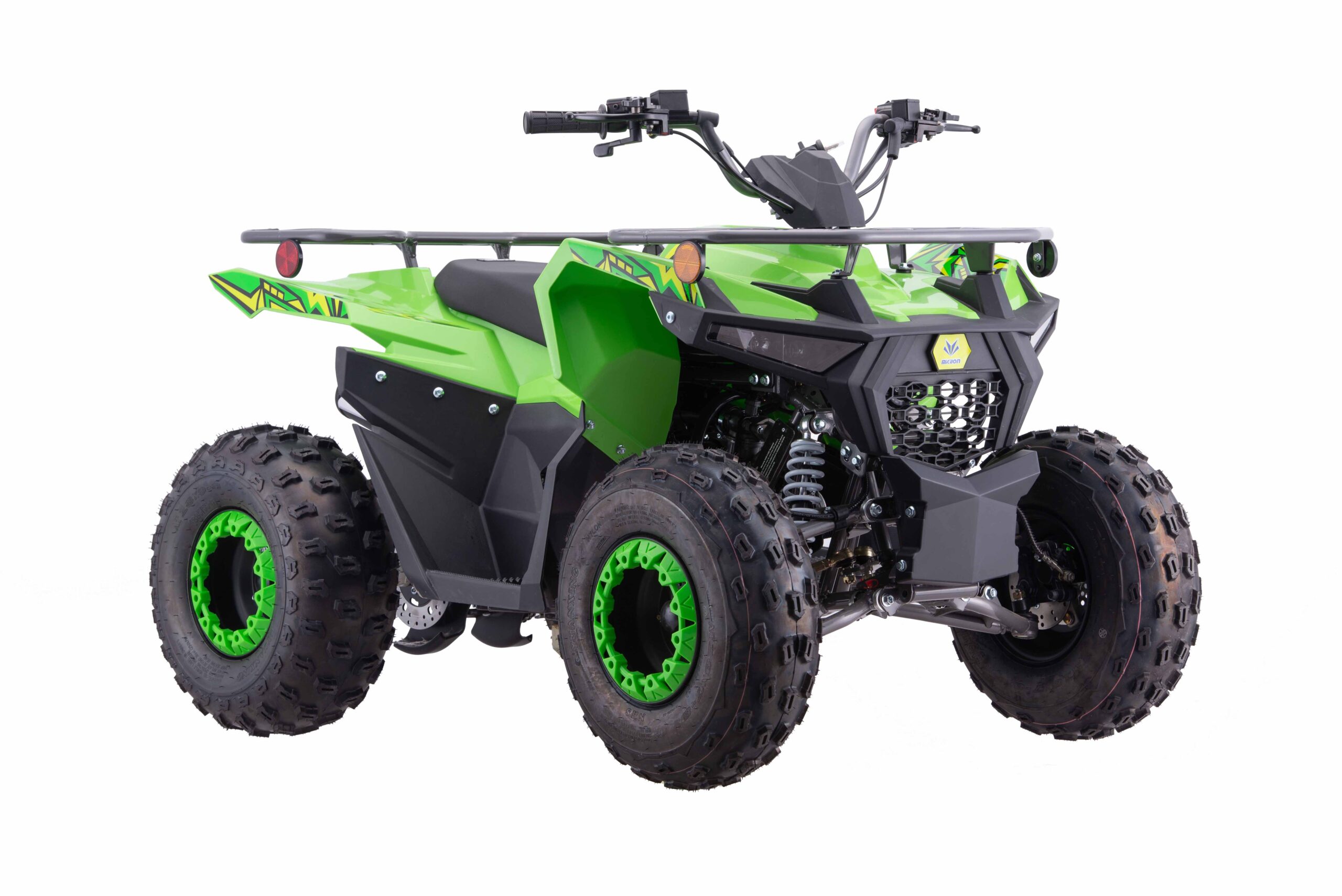

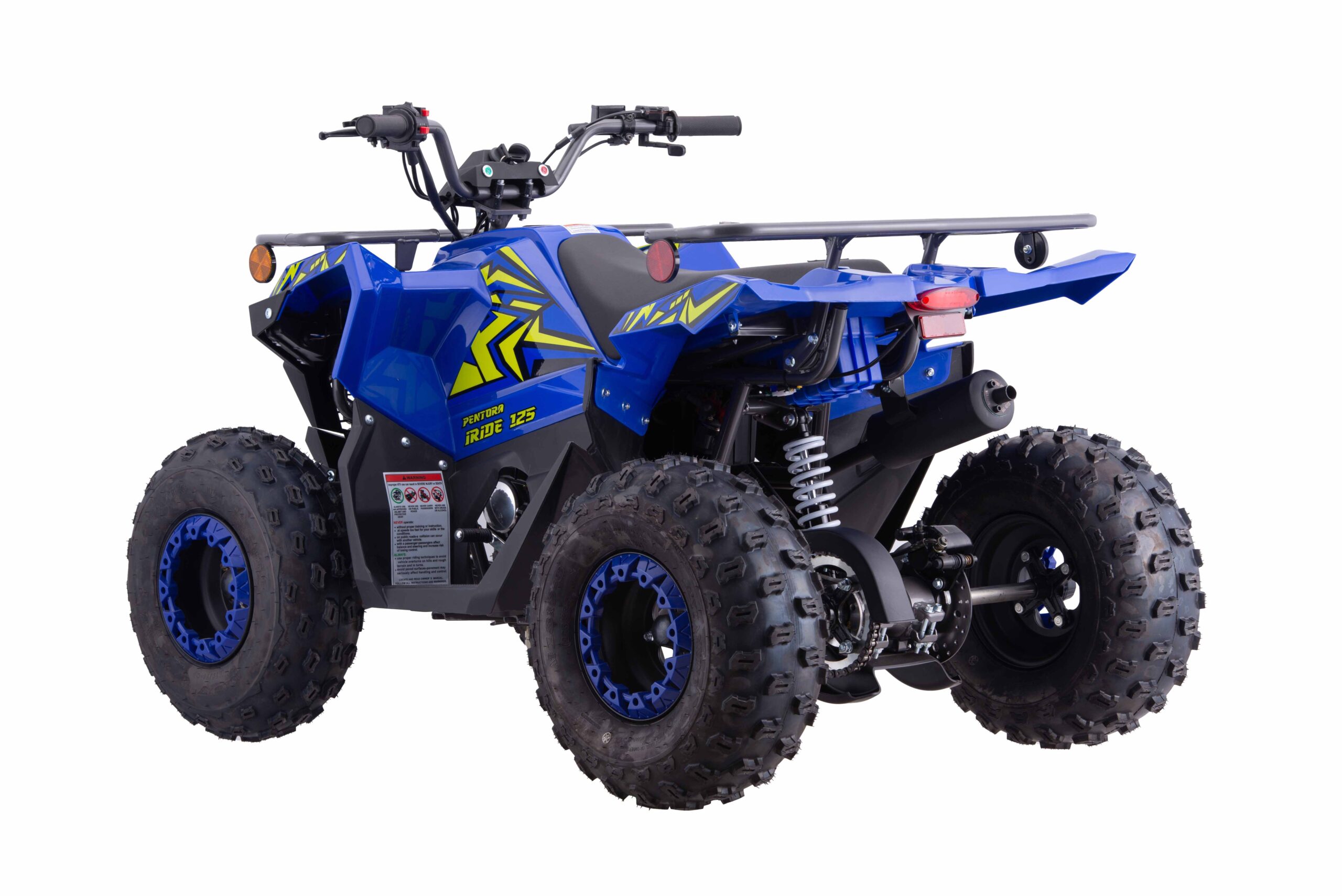

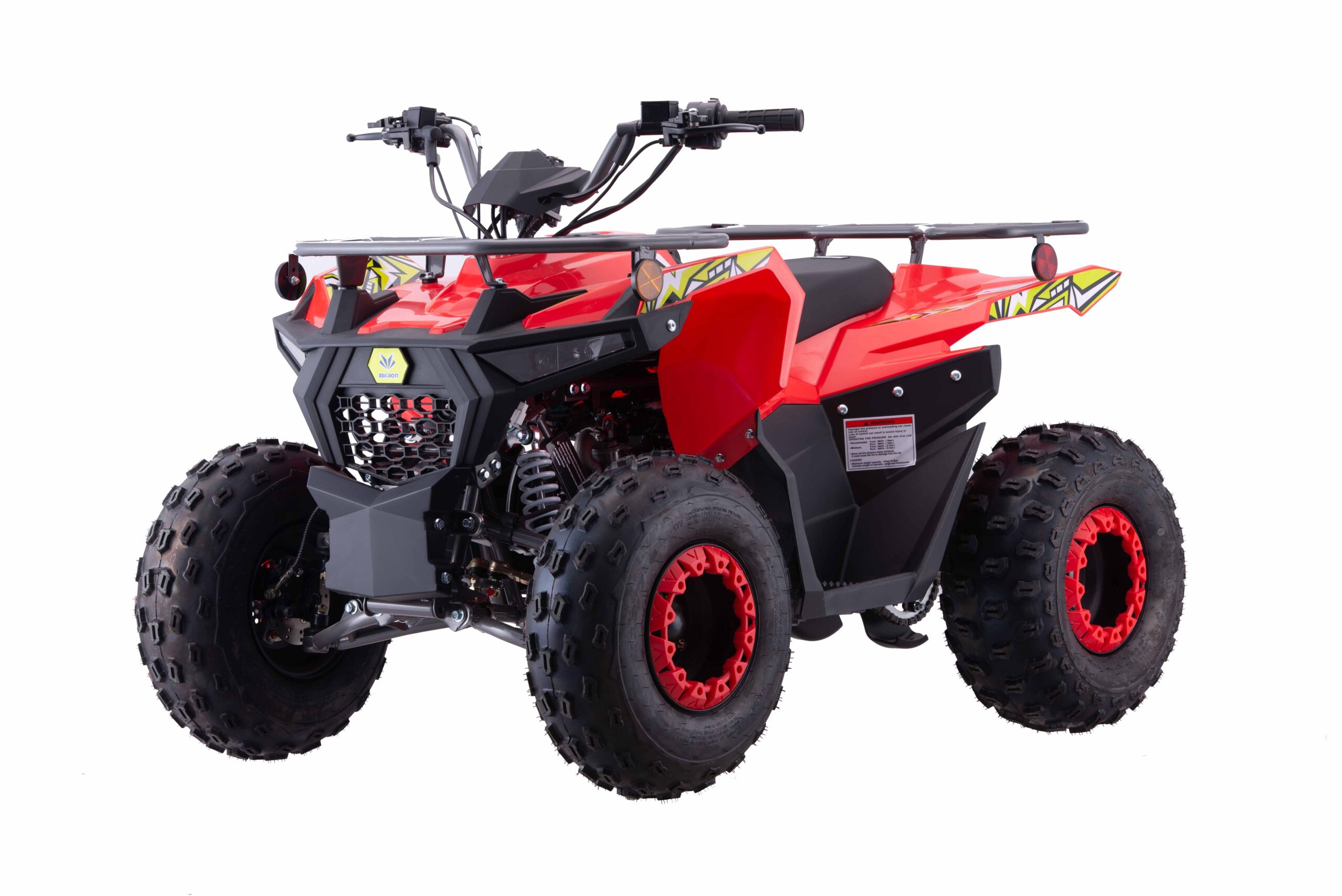

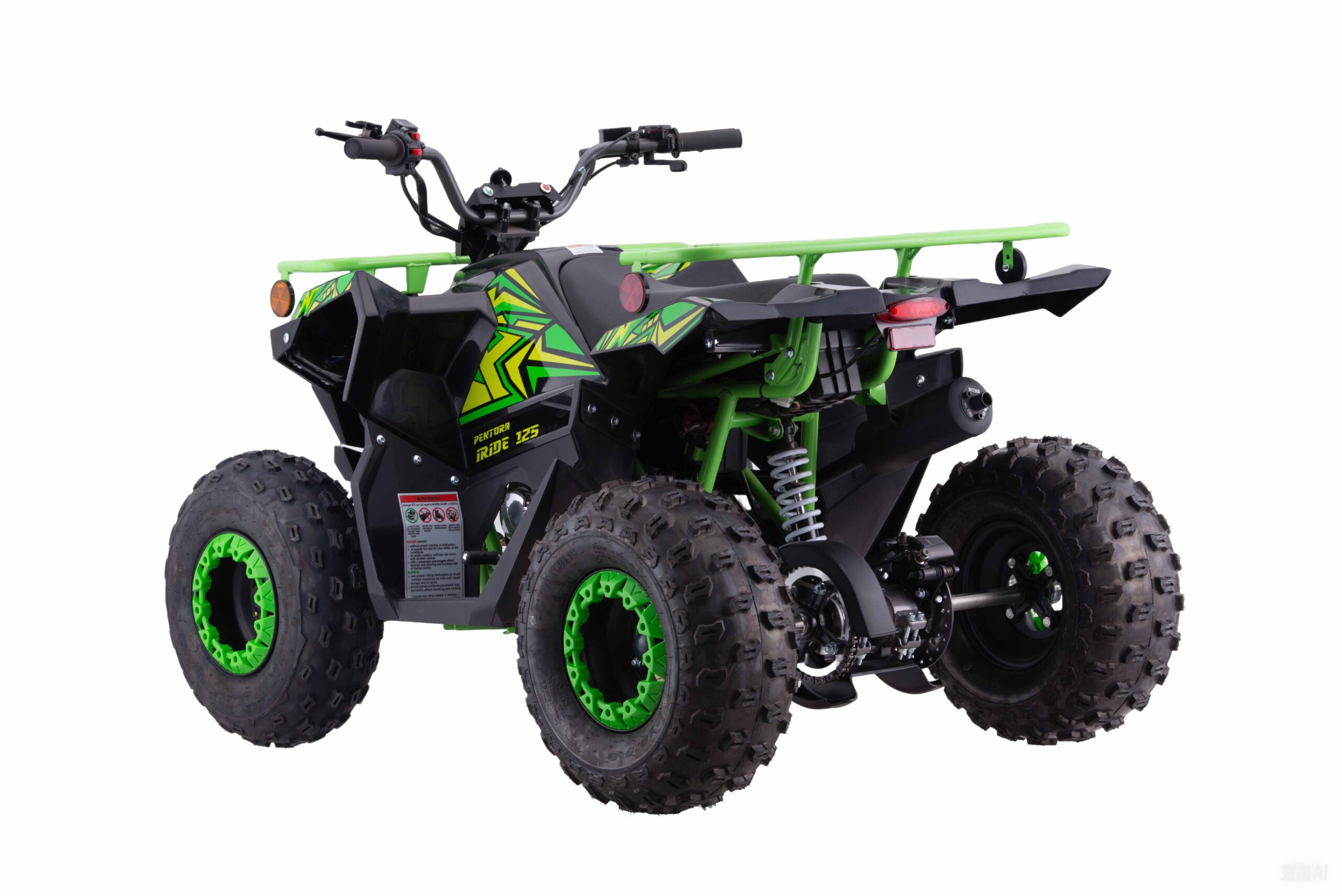

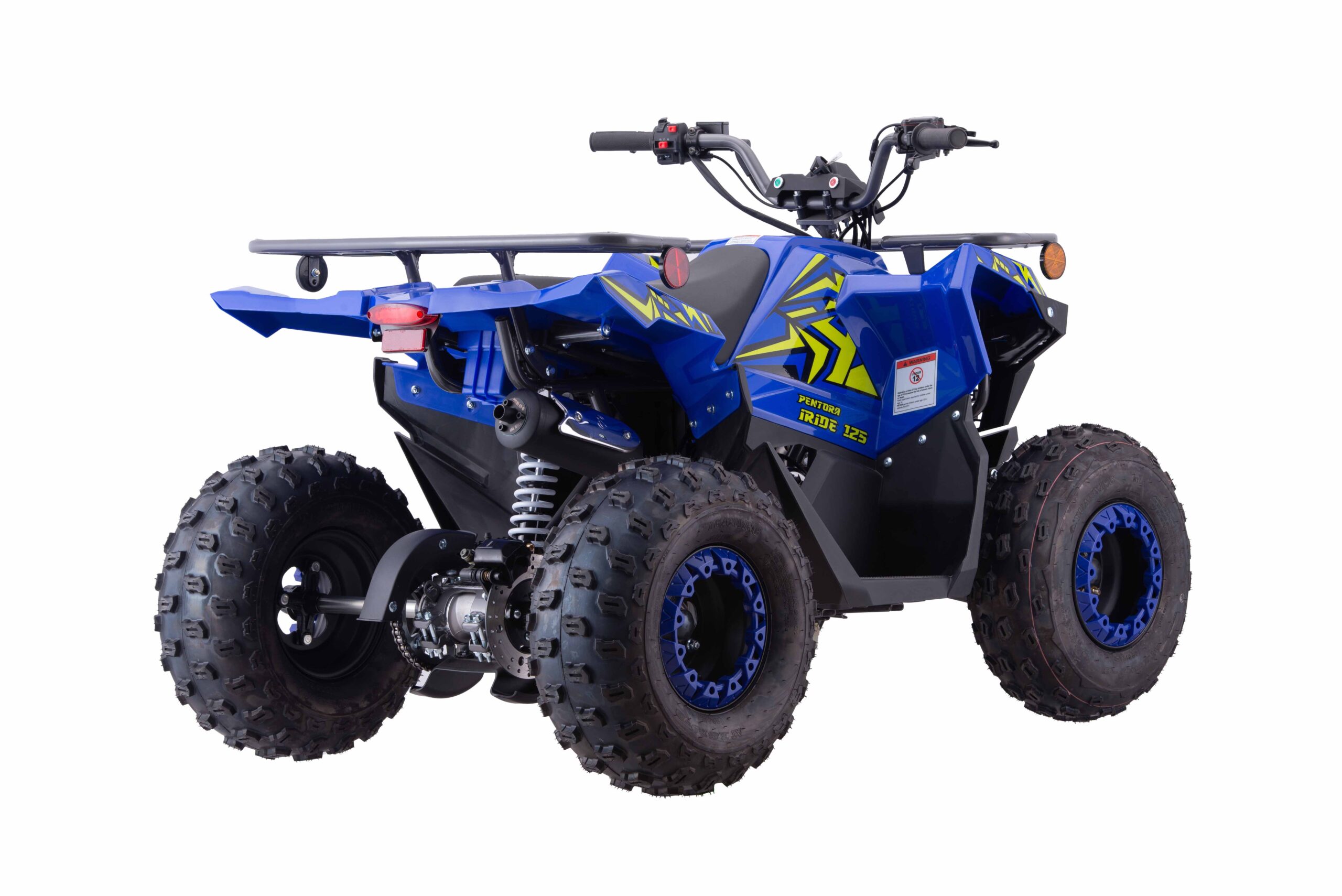

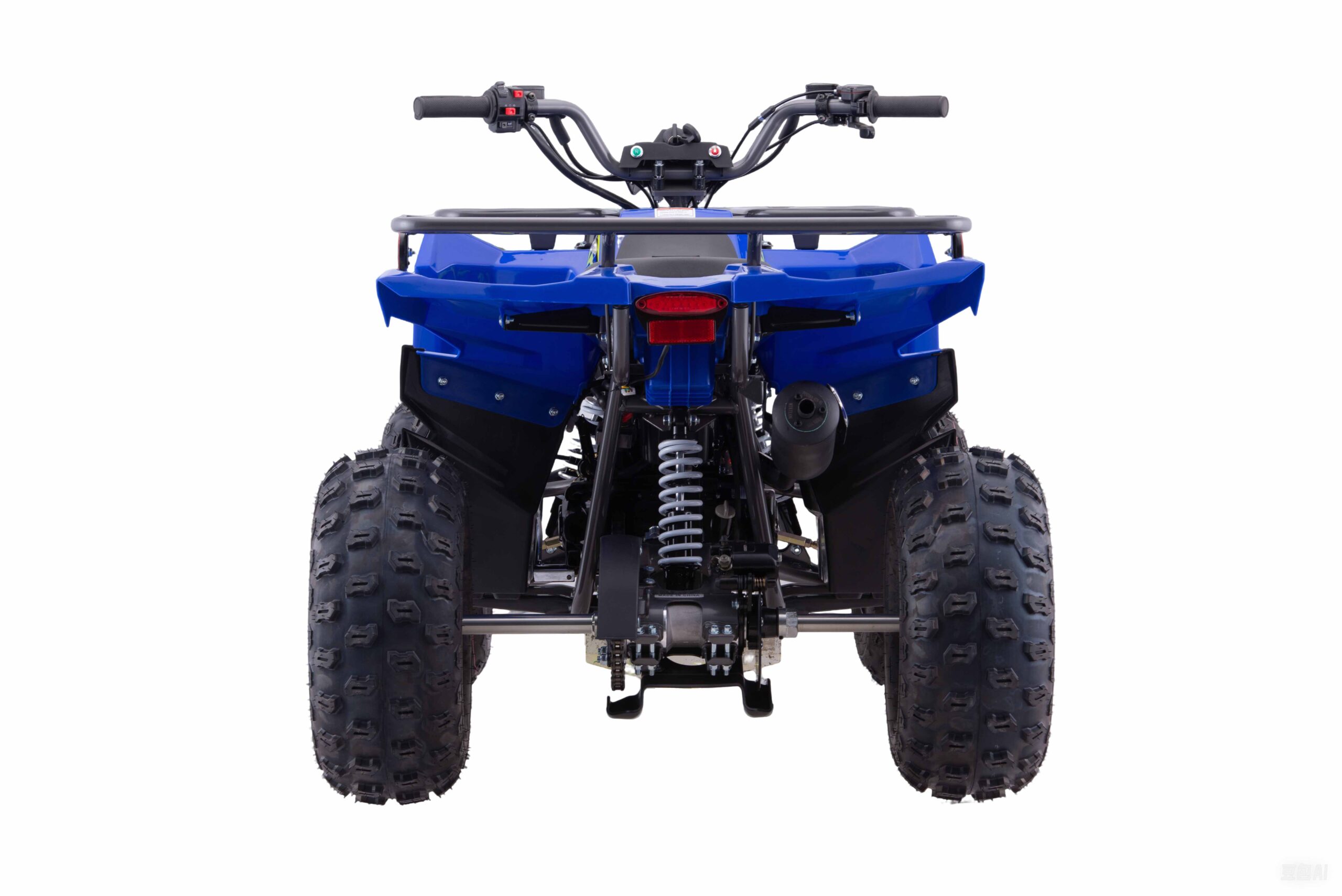

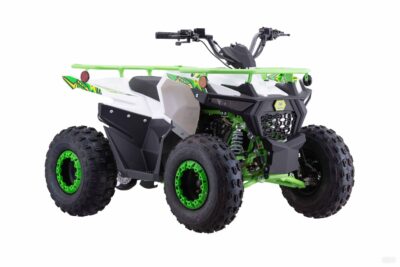

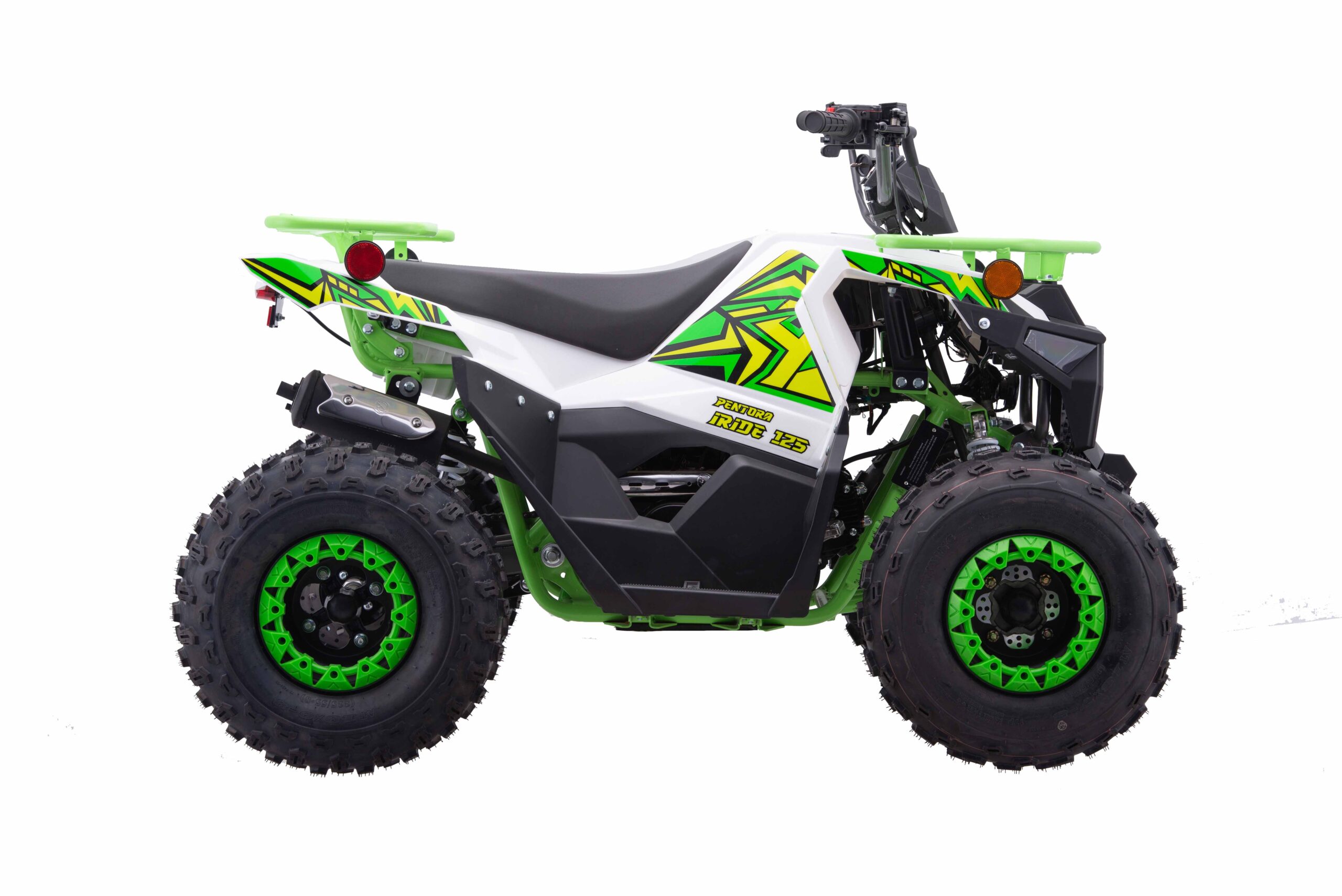

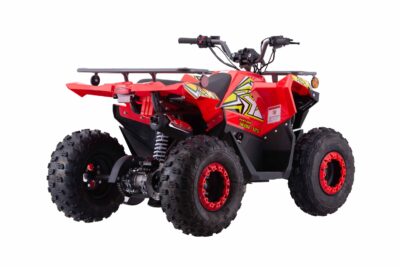

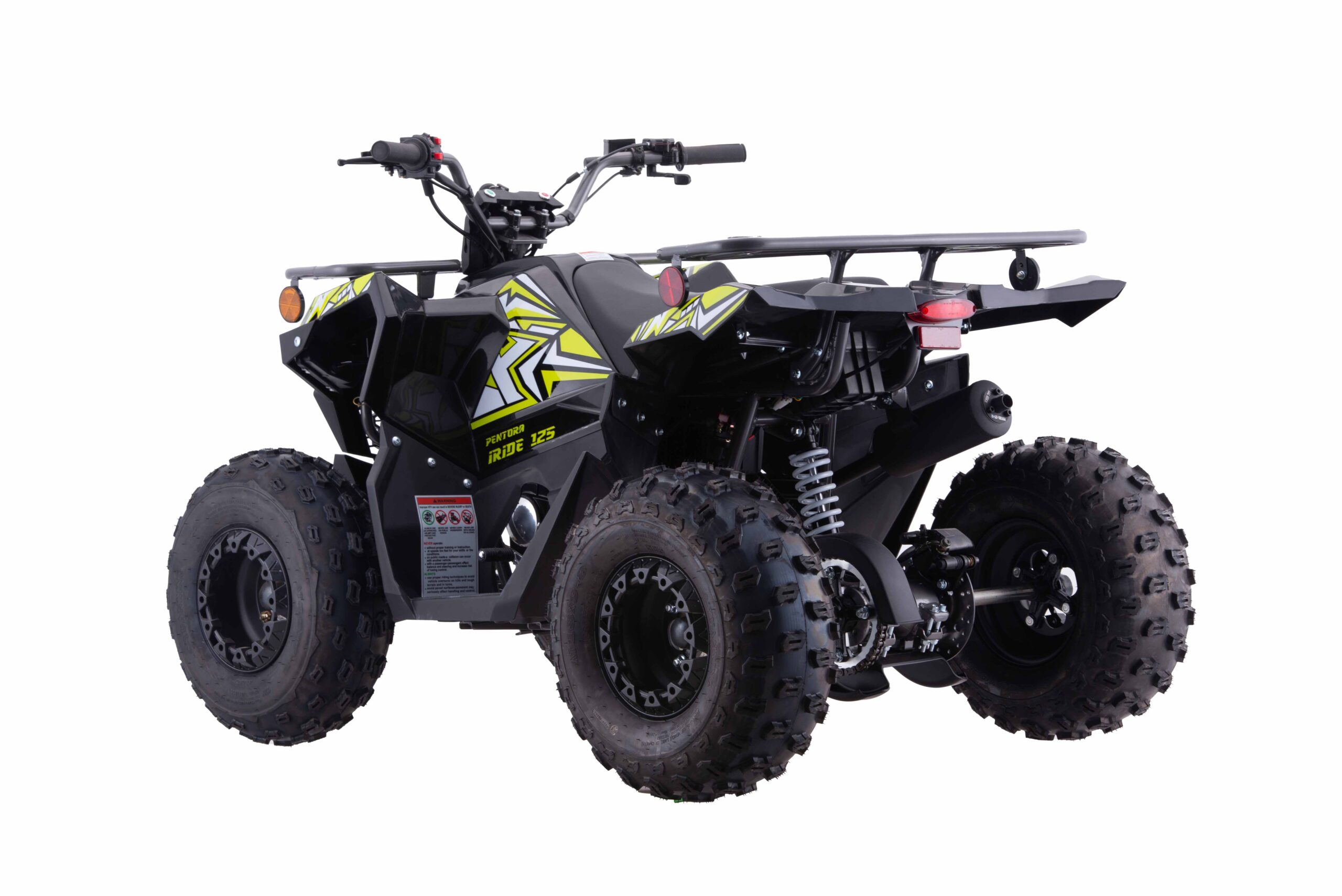

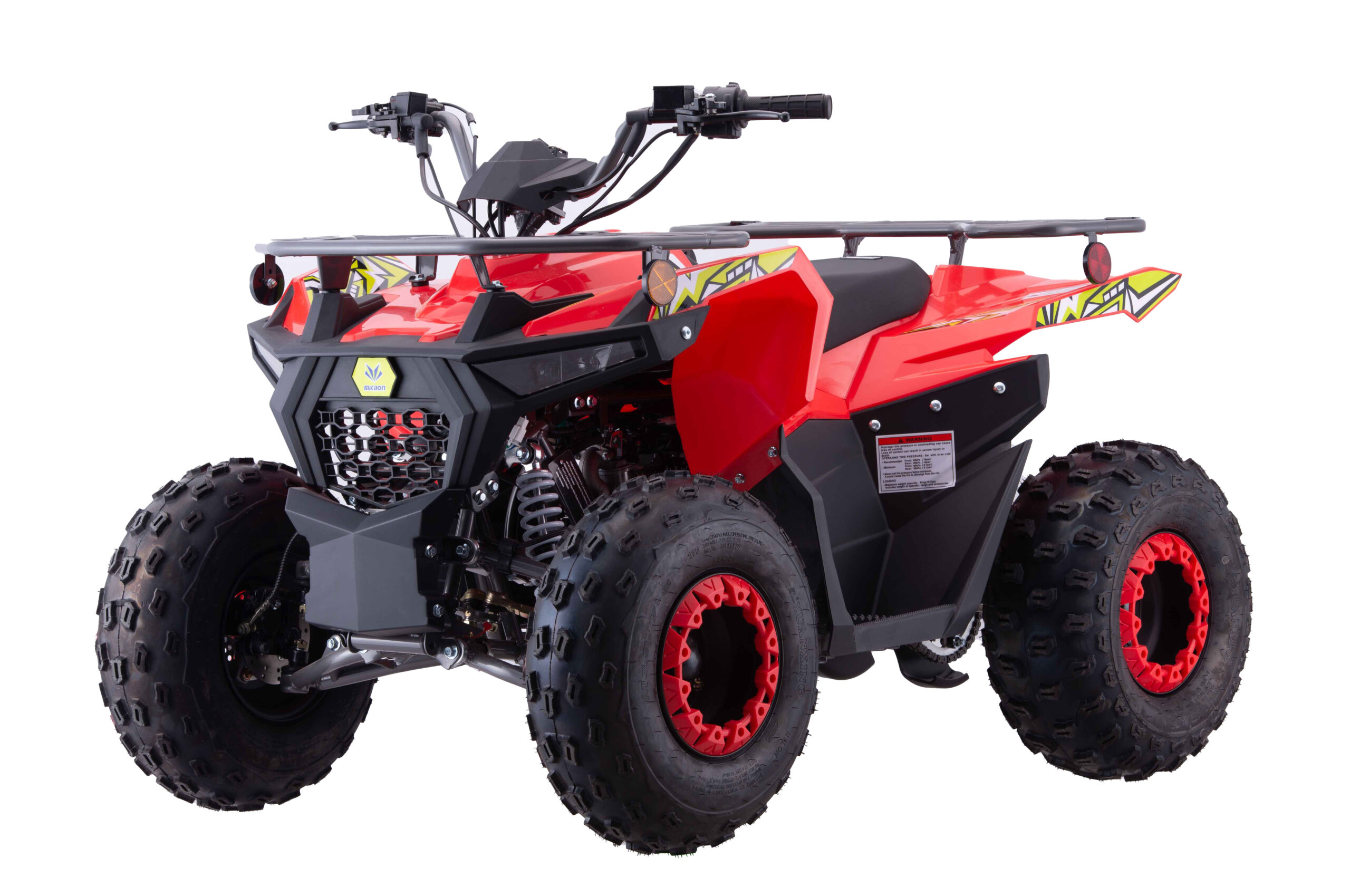

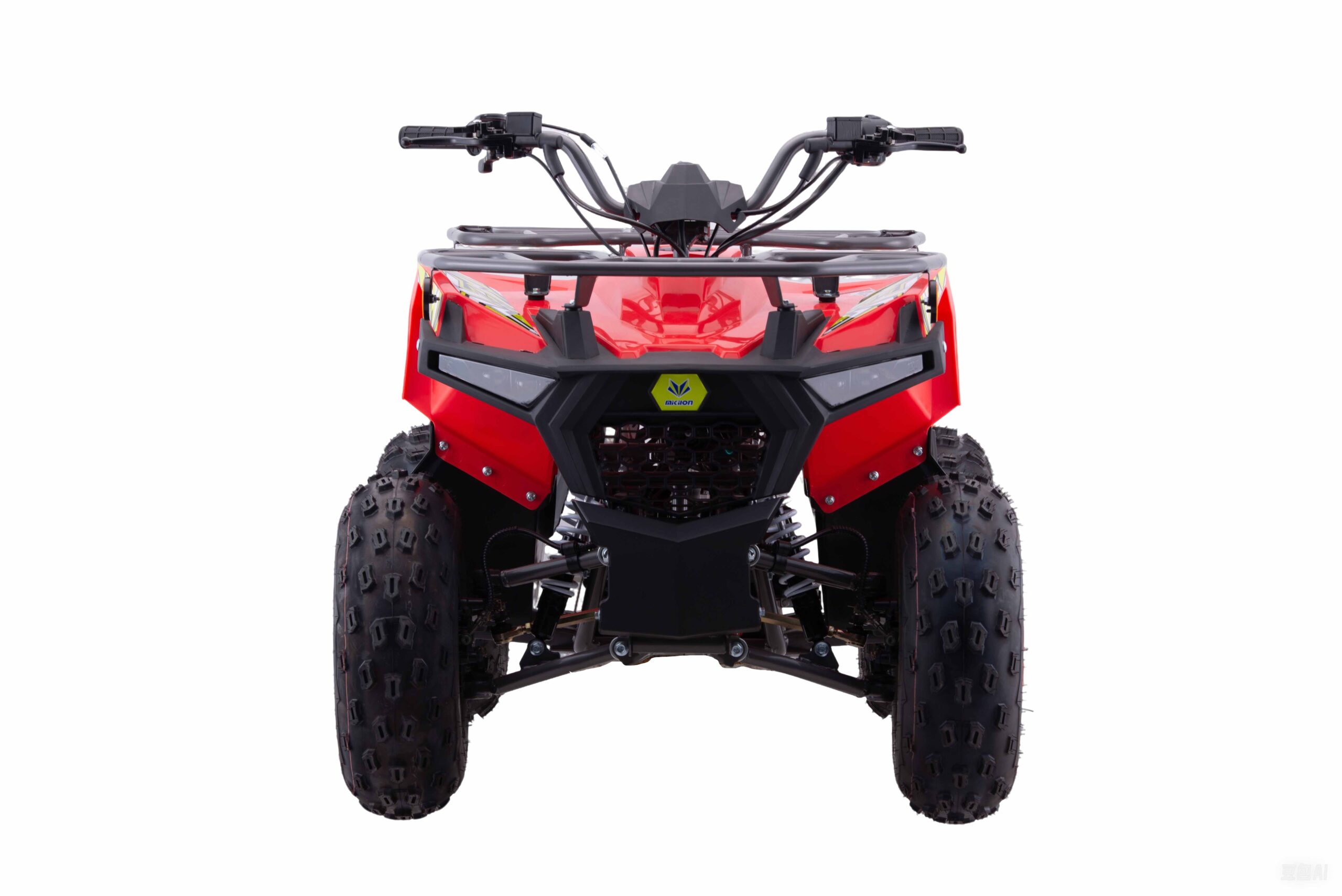

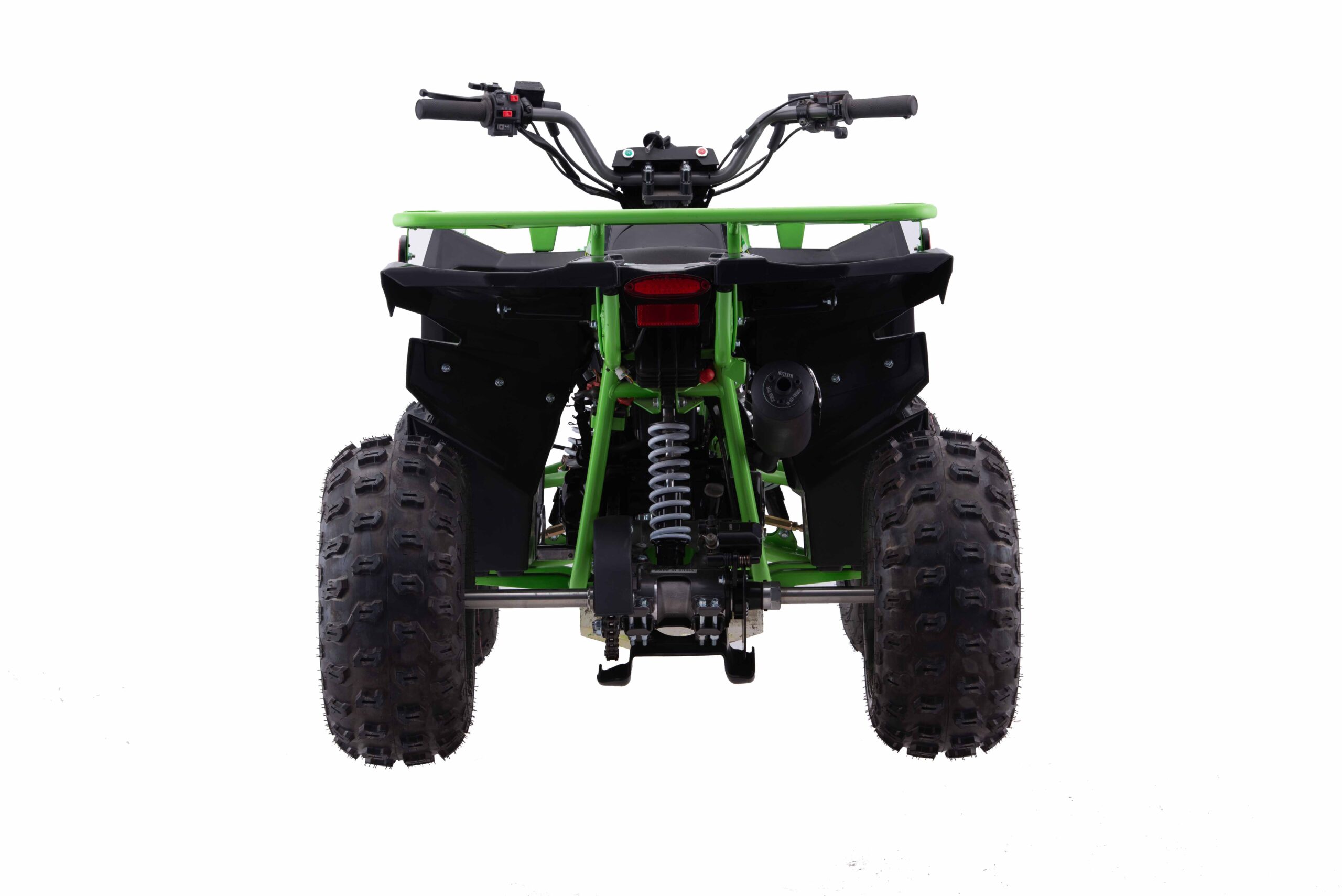

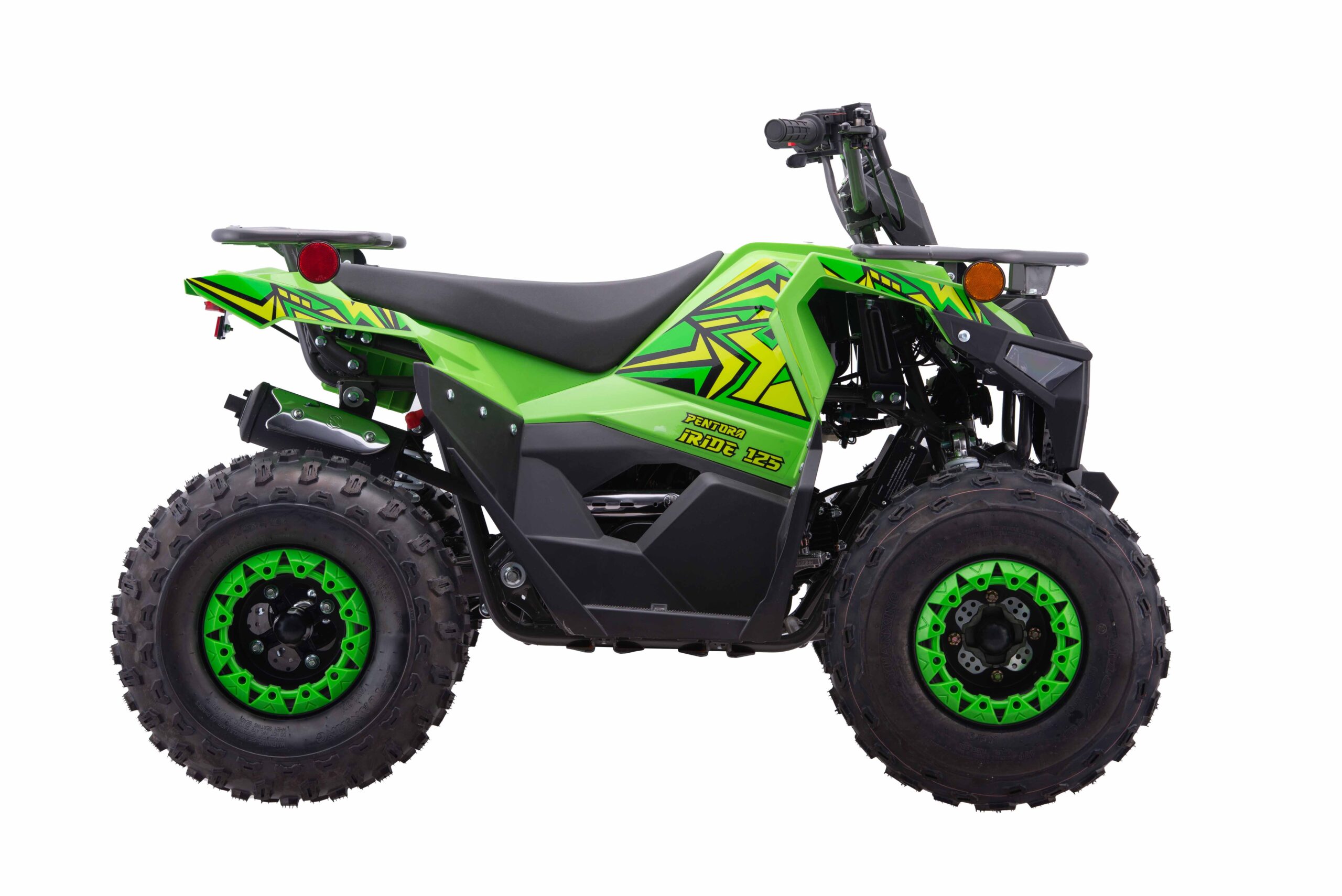

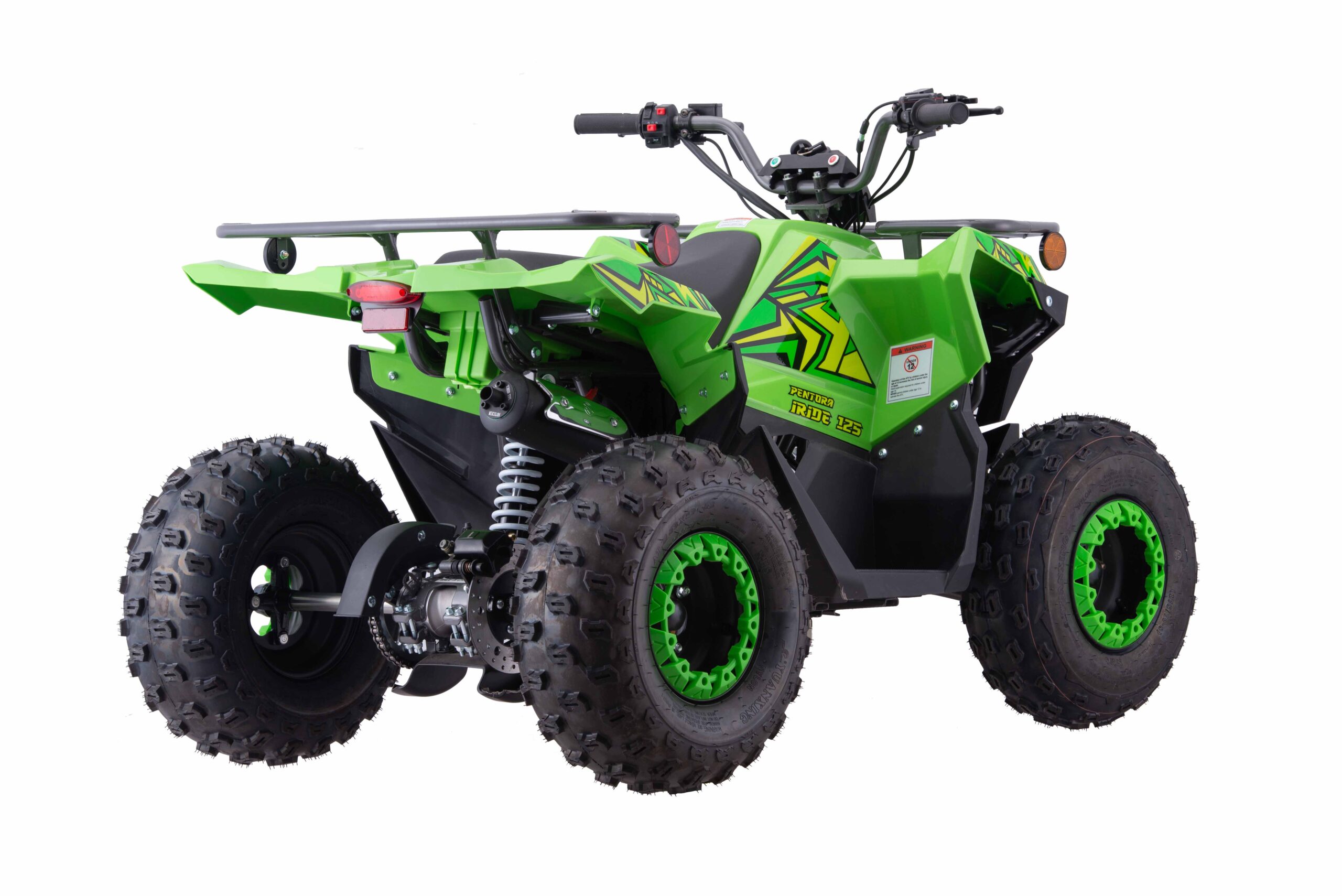

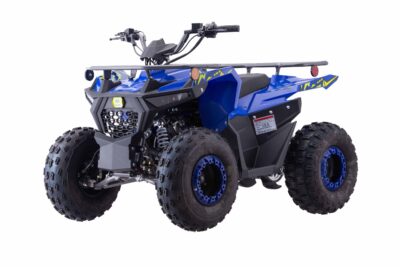

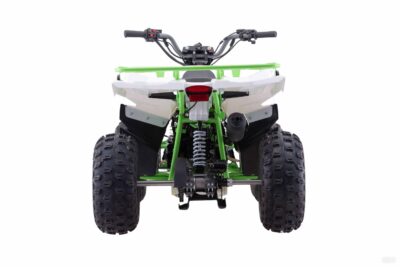

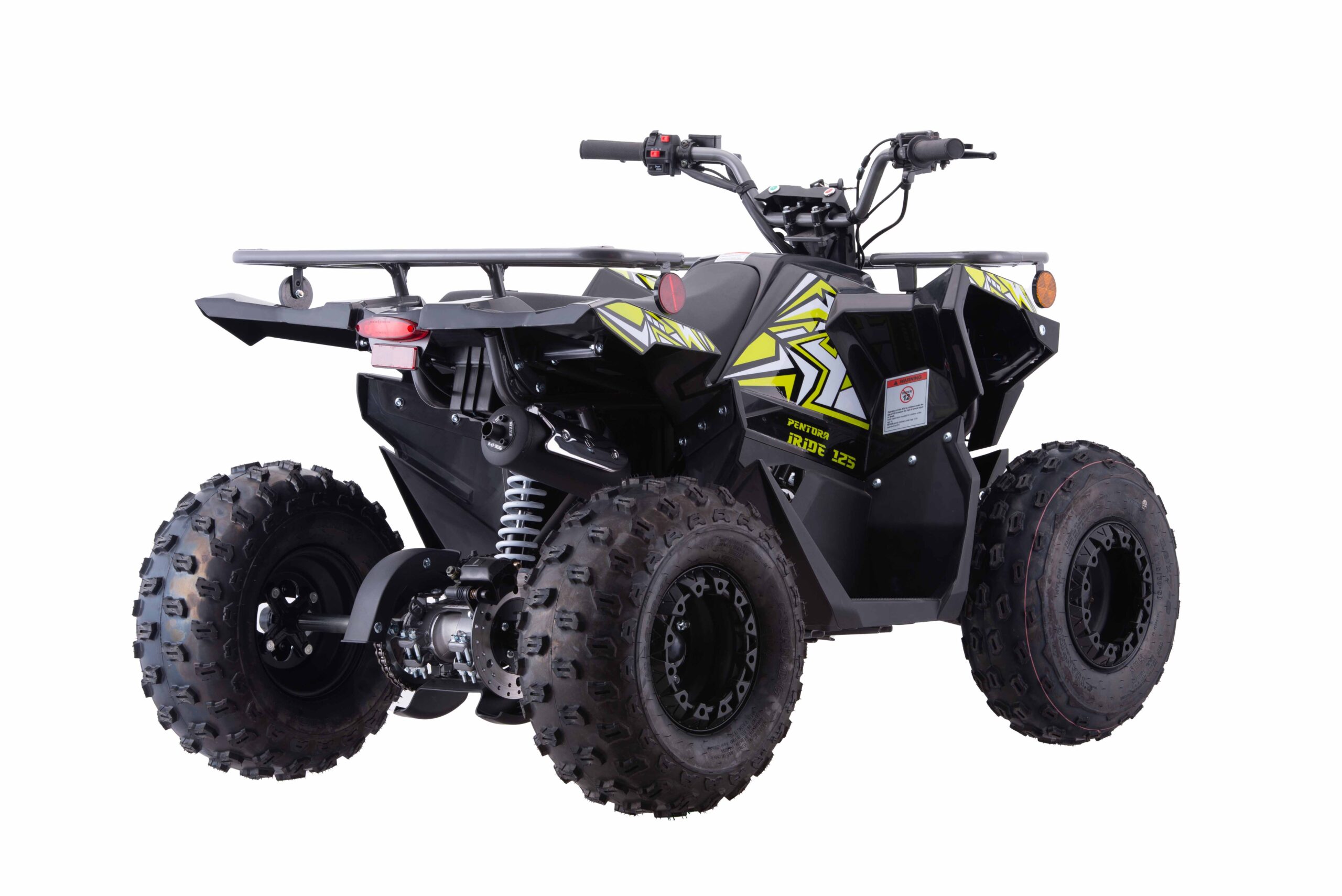

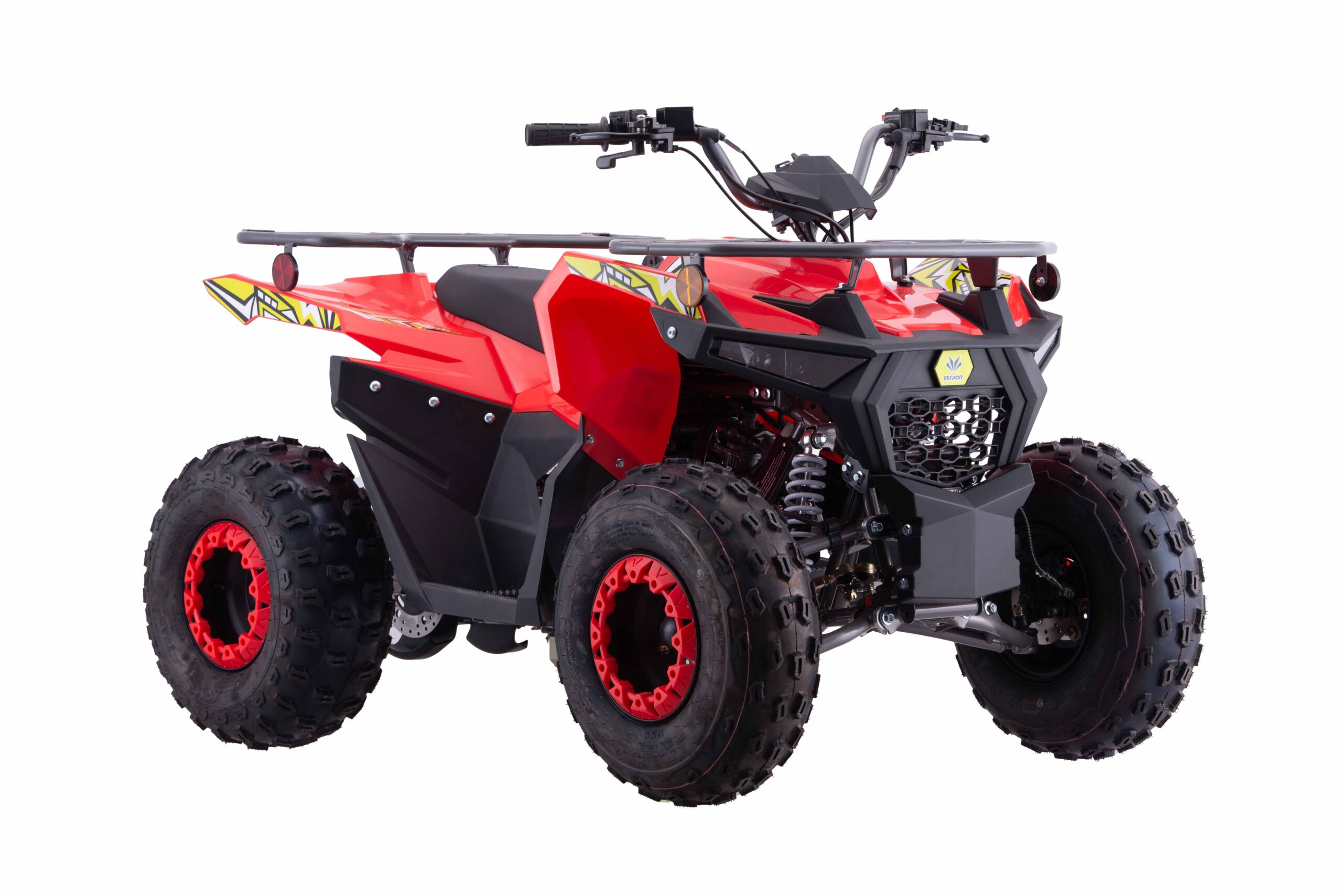

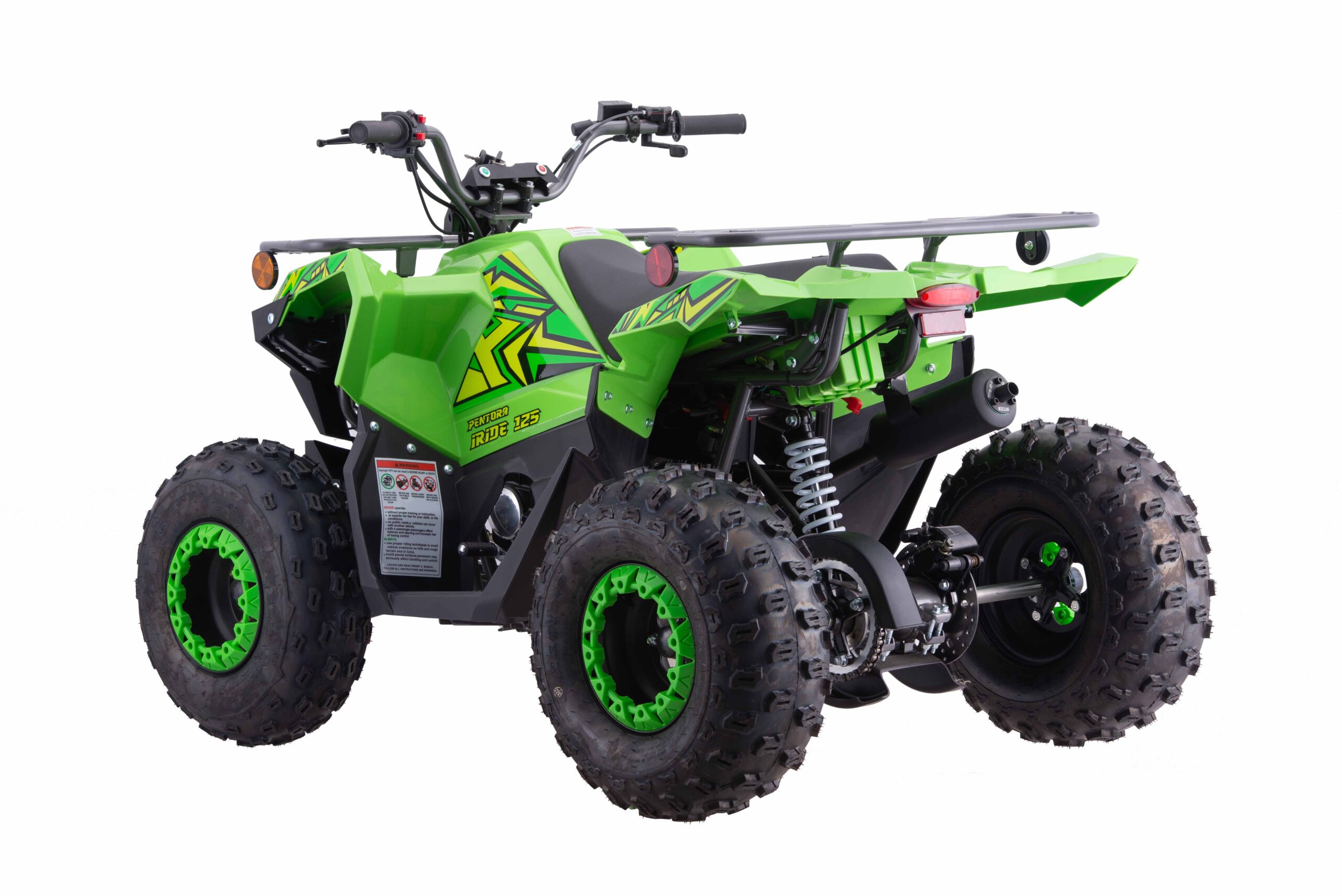

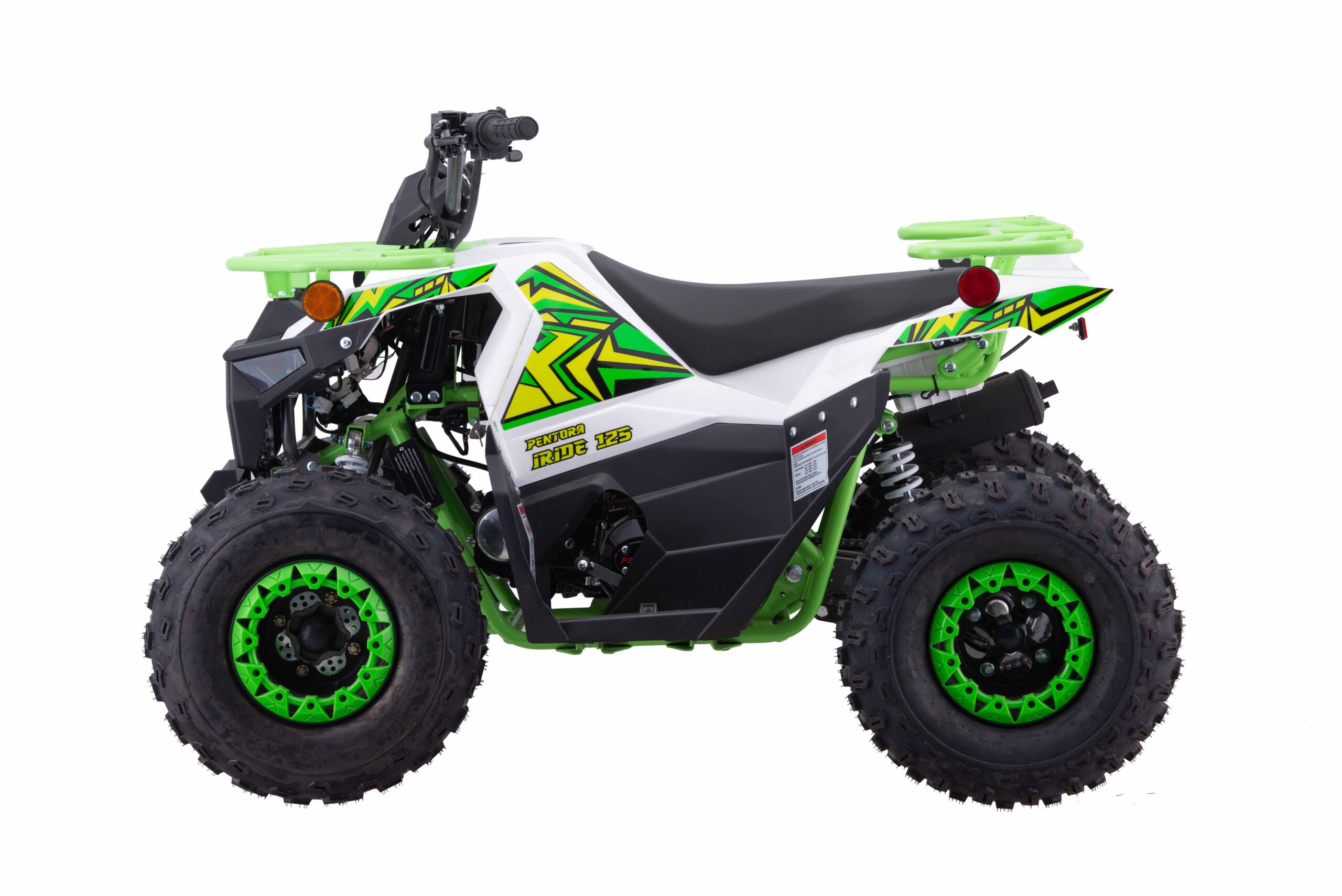

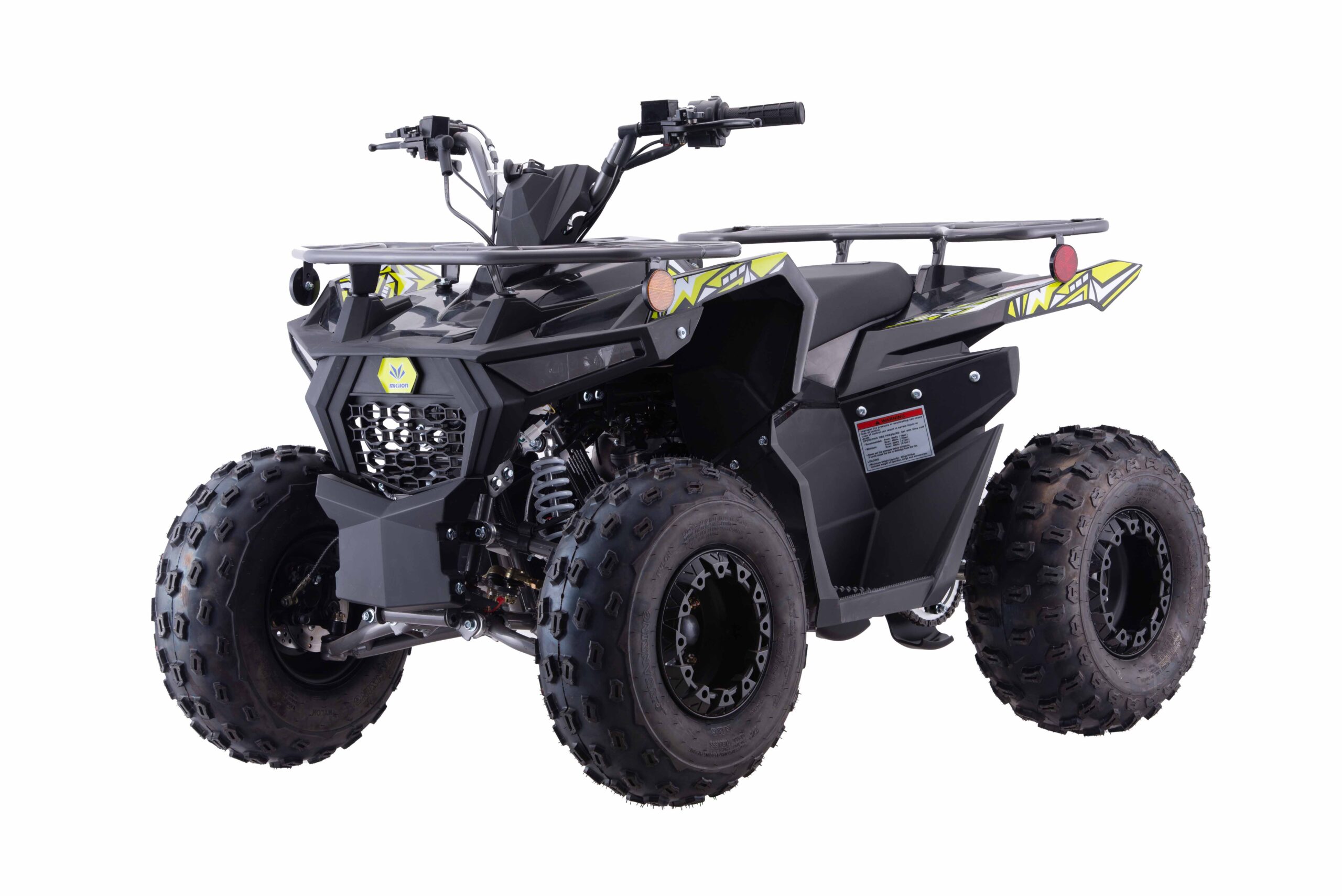

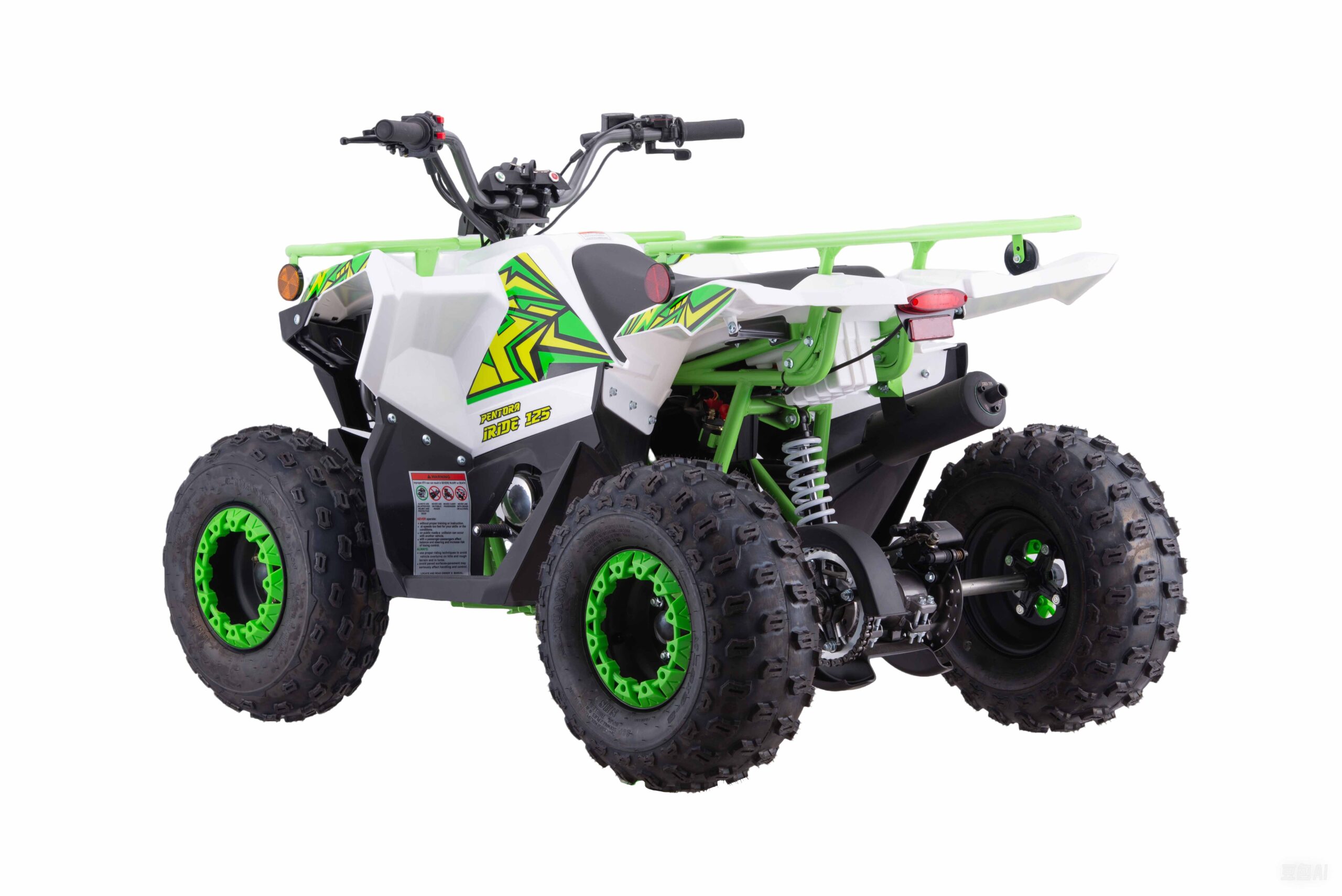

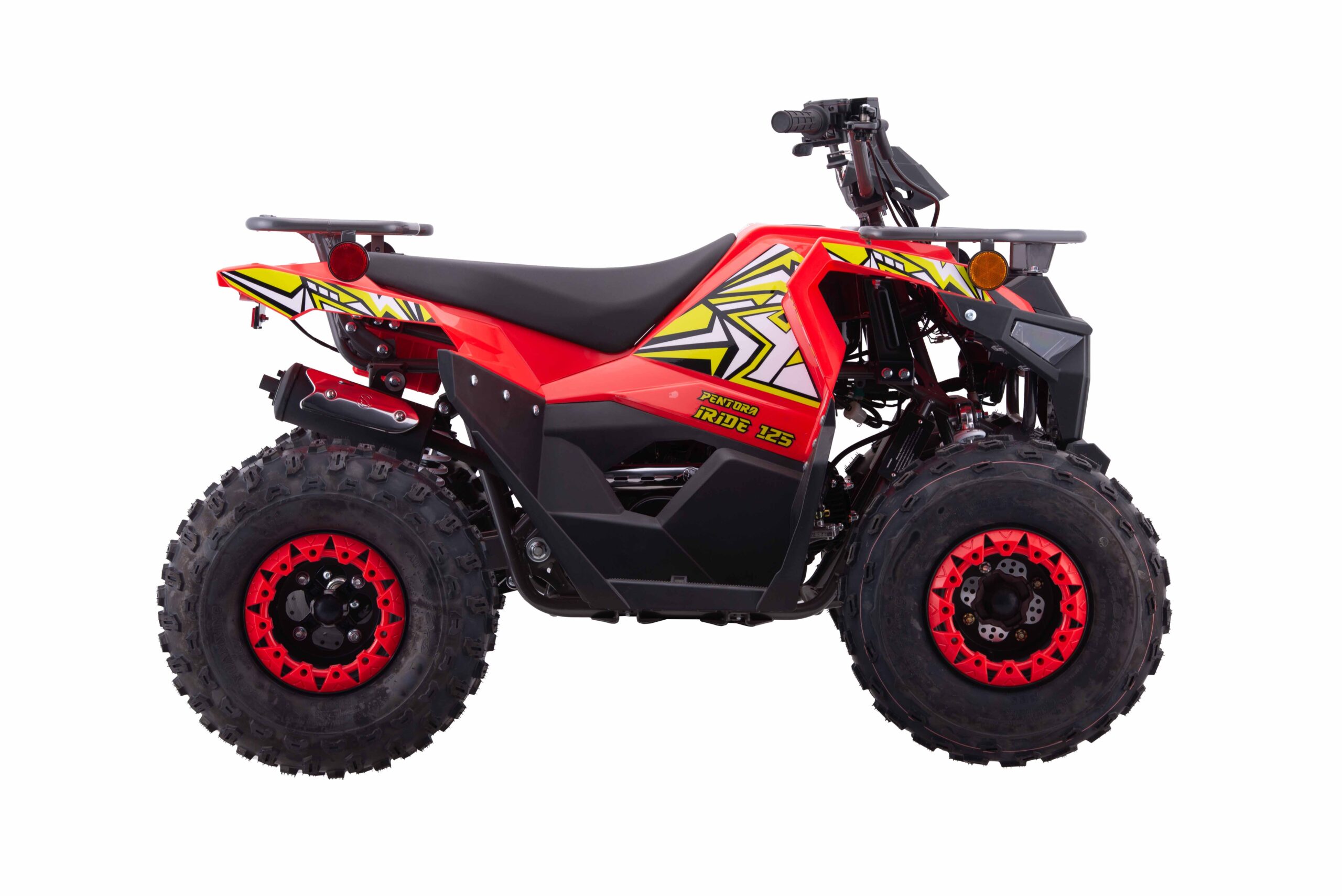

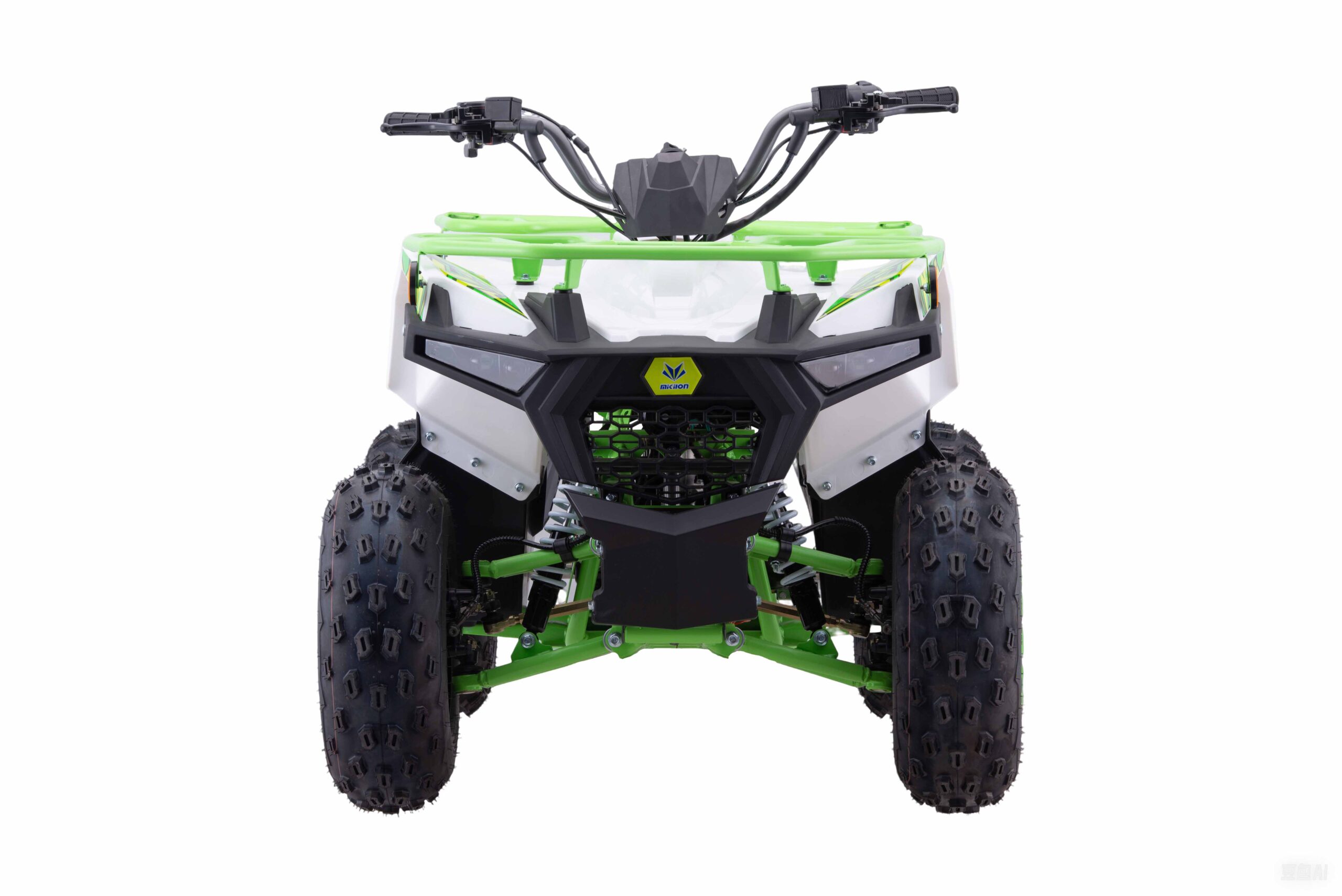

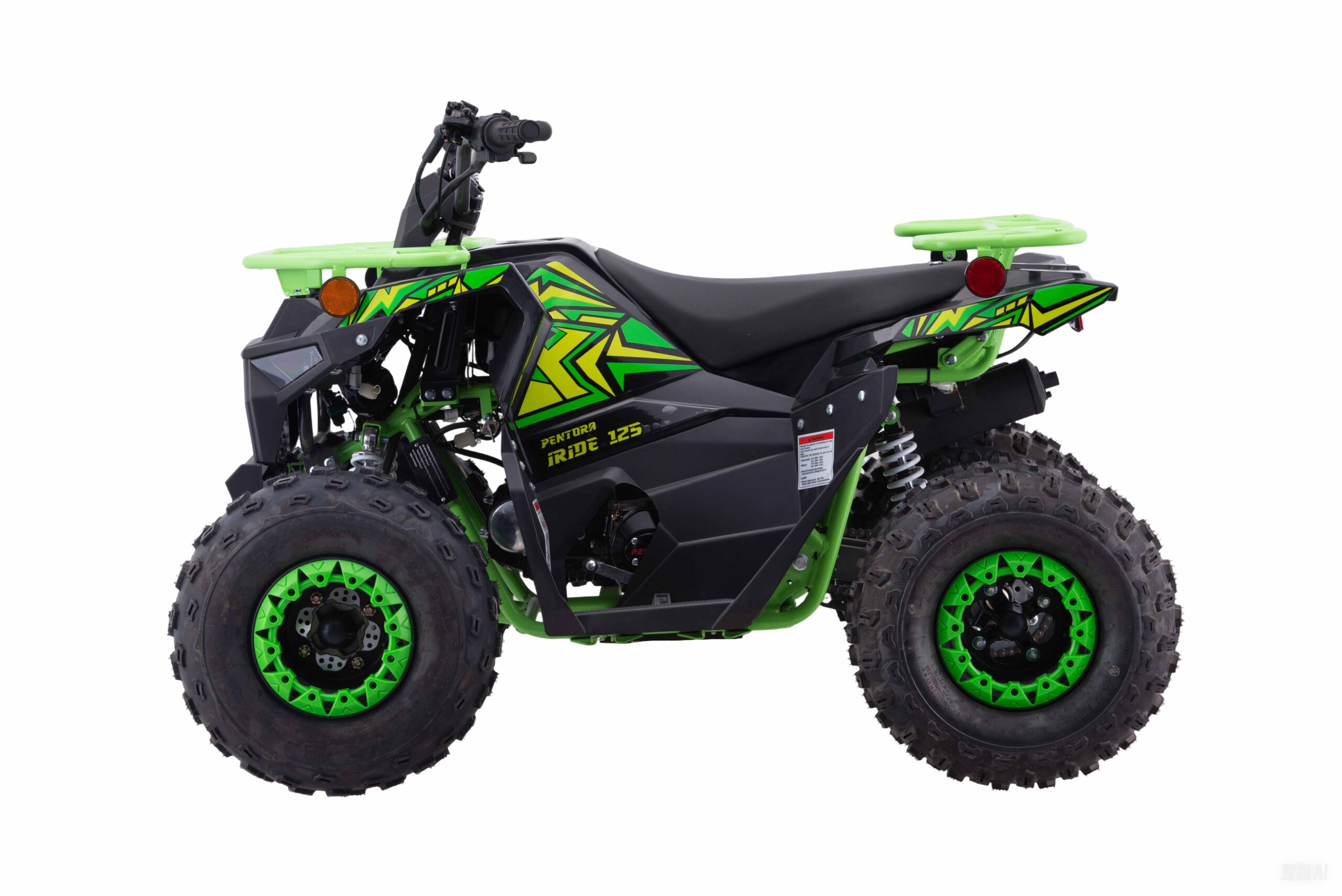

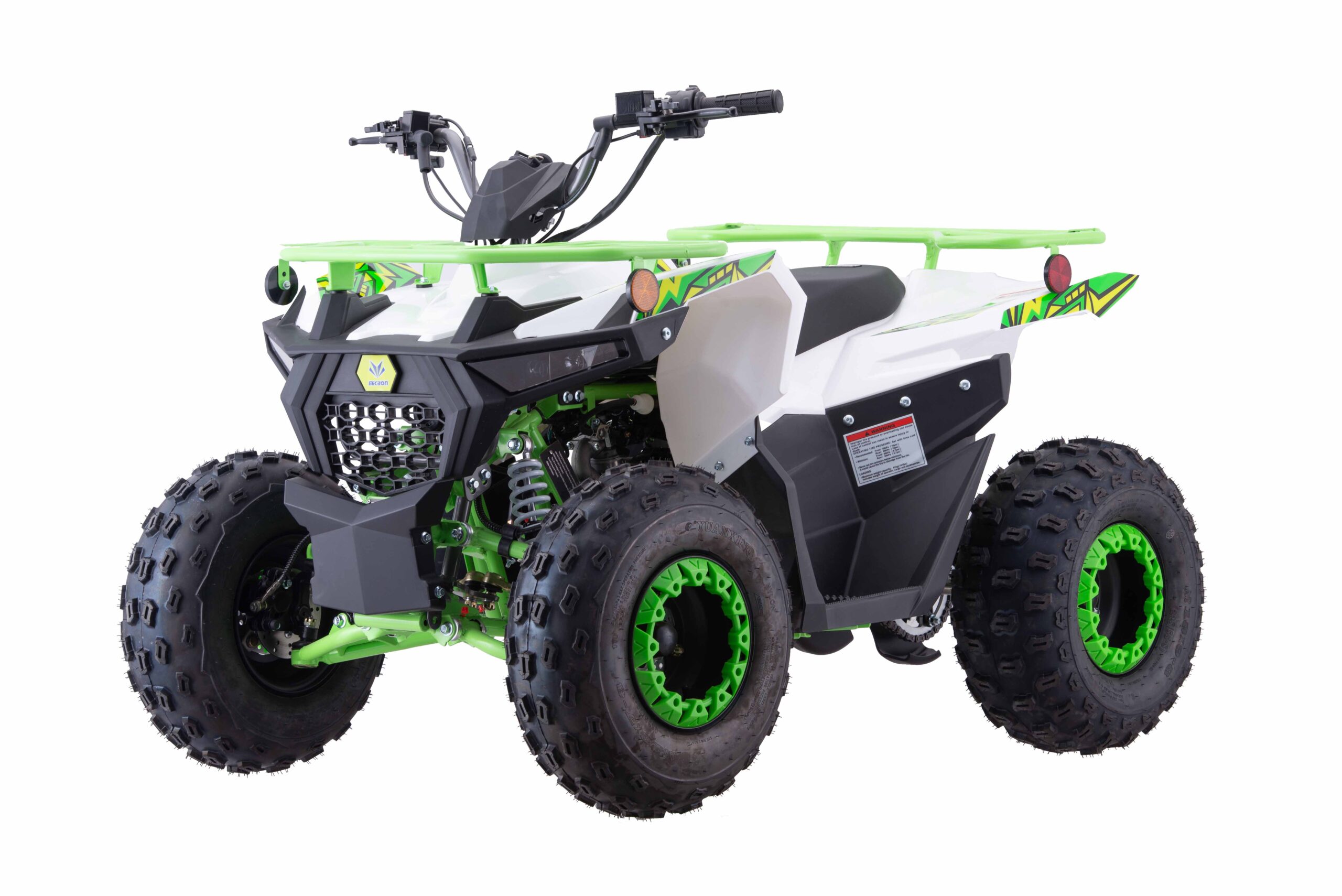

PENTORA IRIDE 125 SPECS:
| ITEMS | SPEC |
| Engine Mode | ZS154FMI-5 |
| Engine Type | Single cylinder,4-stroke,air-cooling, camshaft upward, with balance shaft，tilting (10°leaned) |
| Displacement(ml) | 123.67 |
| Max.Power(kw/r/min) | 〔6.3（1±10%）〕/〔7500（1±5%）〕 |
| Max.Torque (N.m/r/min) | 〔8.8（1±10%）〕/〔5500（1±5%）〕 |
| Compression Ratio | 9.0:1 |
| Bore and Stroke(mm×mm) | 54×54 |
| Ignition method | CDI |
| Lubrication method | Pressure and Splash |
| lubricating oil | 15W/40-SE（-10TO 40℃） HQB-10（<-10℃） |
| Starting method | E-START |
| Clutch method | Automatic Wet Multi-Plate |
| Gearshift Method | Constant mesh, two stage transmission ,4-speed Gearshift |
| TRANSMISSION | chain |
| spark | A7RTC |
| atv size | 1430×965×950 |
| Wheelbase mm | 970±20mm |
| wheels distance mm | front 750±15mm/ rear 760±15mm |
| seat height mm | 700±15mm |
| clearance mm | 180 |
| Minimum turning circle radius mm | 2500±500mm |
| sprocket | front 428-14; rear ：428-42 |
| brake | fr & rear disc brake |
| brake method | front and rear hand brake |
| rim | front and rear 8 inch |
| tyre | front：18×7-8/rear ：18×9-8 |
| front suspension | oil dumper/270mm |
| rear suspension | oil dumper/285mm |
| height from foot padel to seat mm | 445±15mm |
| front light | 2-12V/25W |
| tail light | LED |
| turning light | / |
| carb | PZ19 |
| oil tank | 7L |
| frame | Double beam welded frame |
| rear swing arm | Tube and plate structure |
| max loading kg | 82 |
| N W kg | 109 |
| G W kg | 131 |
| packing | steel frame+carton |
| packing size | 1310×850×650 |
| loading qty | 92pcs/40QH |
